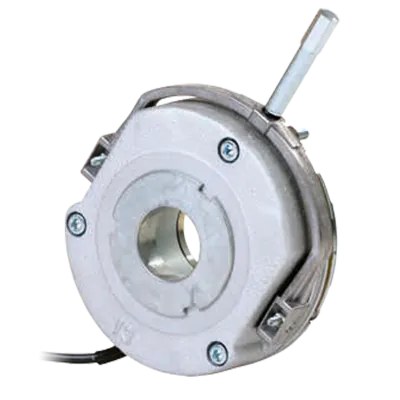

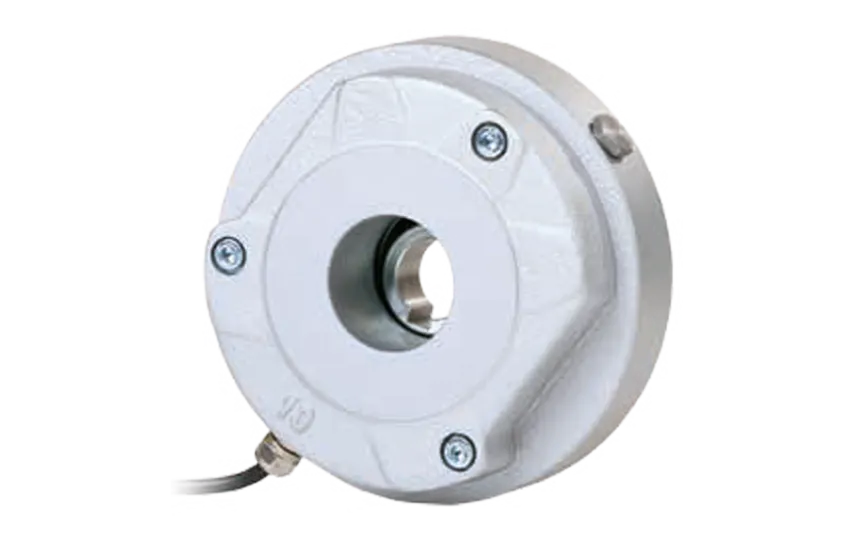

Precima FDB 10 spring-applied brake, fixed, 180VDC, 20H7Ø, 1m cable
HV2052110333AThe Precima FDB 10 is a robust, compact spring-applied brake delivering 10 Nm of holding torque at 180 VDC, mounted on a Ø20 H7 hub. Its IP54/55-rated housing provides complete protection against dust and high-pressure water jets—ideal for industrial automation, outdoor equipment, conveyors, and washdown environments.
This fixed-gap version features a factory-set air gap, ensuring easy installation without adjustment. As a fail-safe brake, it engages automatically during power loss (spring-activated) and releases cleanly only when energized—providing reliable emergency-stop and secure holding performance.
Unpowered, the brake holds firmly; when energized, it disengages precisely—supporting smooth operation in robotic drive units, pick-and-place systems, packaging lines, and small drive applications.
The unit comes with a 1 m cable for immediate integration. Optional features include manual release, flange adapters, wear indicators, temperature monitoring, low-noise or corrosion-resistant variants—allowing tailored solutions for specific installation requirements.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake size 10: Designed to accommodate a wide range of applications, the brake size 10 strikes a perfect balance between compactness and power.
- Brake voltage 180VDC: The 180VDC brake voltage provides ample stopping power, ensuring efficient and effective braking performance.
- 1m cable: Equipped with a 1 meter cable, the brake offers flexibility in installation and integration into various systems.
- Brake torque 10Nm: With a fixed braking torque of 10Nm, this brake delivers consistent and reliable stopping force, enhancing overall safety.
- IP54/55 protection classification: The IP54/55 protection classification safeguards the brake against dust, dirt, and water, making it suitable for challenging environments.
