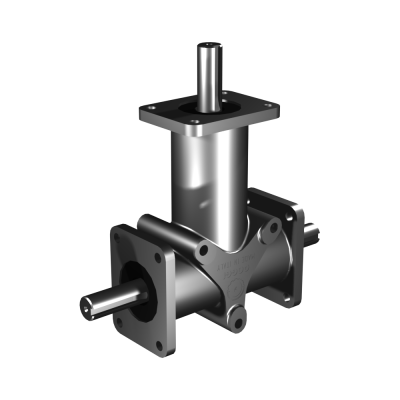

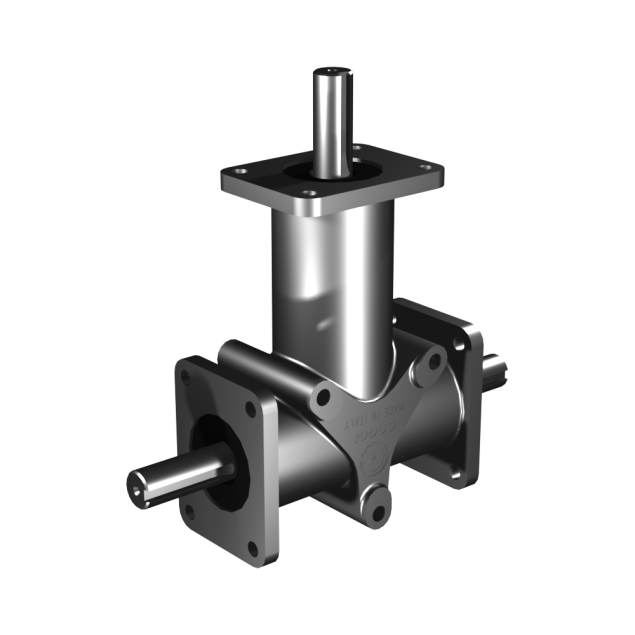

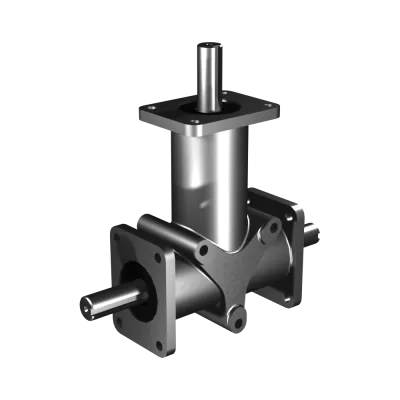

Poggi right angle gearbox 5031, R1:2, D1/2, Ø20f7, 3-way, Stainless steel

HV3045031121

The Poggi right angle gearbox 5031 is built for synchronized power distribution across three Ø20f7 shafts in a D1/2 configuration. With a 1:2 gear ratio, this unit delivers torque multiplication — reducing output speed to half that of the input while achieving up to 12.0 Nm @ 1400 RPM. Housed in stainless steel, it is engineered for performance in harsh or hygienic settings such as food, pharma, or offshore environments. The 15'–30' backlash tolerance ensures precision where motion repeatability is critical.

€1,413.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

With a compact design, the Poggi 5031 provides 3-way output via Ø20f7 shafts in D1/2 configuration, with a 1:2 gear ratio. Housed in AISI 316 stainless steel body, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.

Gear type: Right angle gearbox
Model: Poggi 5031
Gear ratio: 1:2
Shaft configuration: D1/2 (3 shafts)
Shaft diameter: Ø20f7
Max torque @ 1400 RPM: 12.0 Nm
Max speed: 1400 RPM
Housing material: Stainless steel
Backlash: Normal 15'–30'
Brand: Poggi (Italy)
