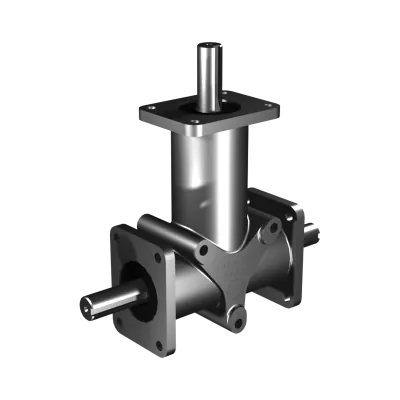

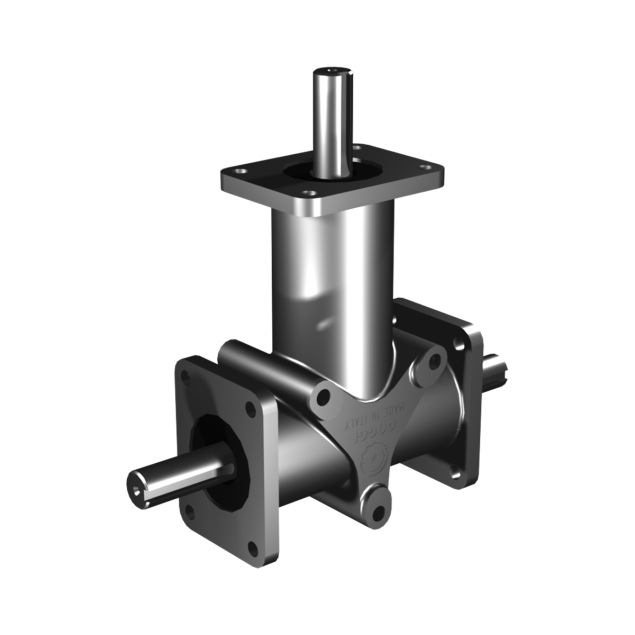

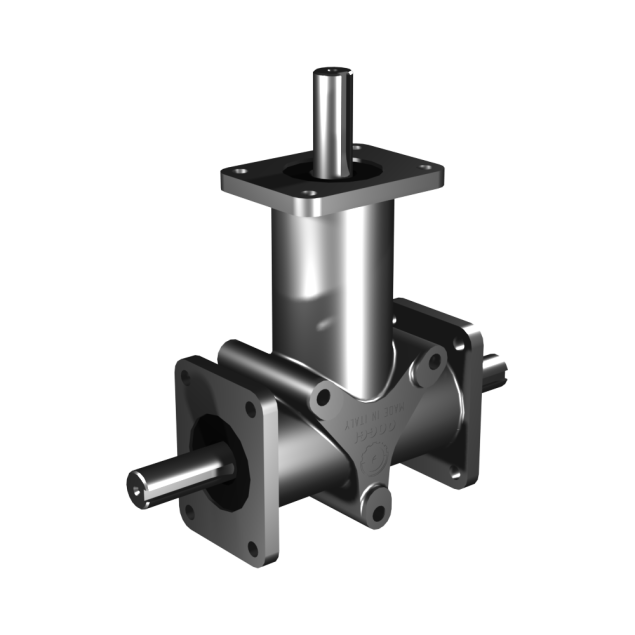

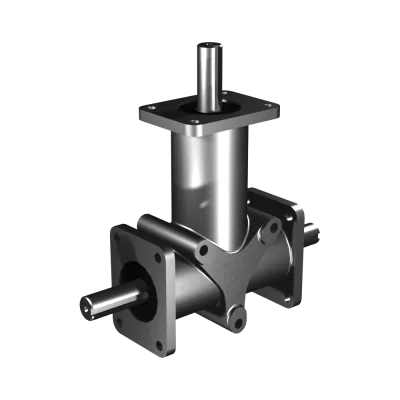

The Poggi right angle gearbox 5031, R1:1, D1/2, Ø20f7, 3-way, Stainless steel is a high-quality bevel gearbox designed for systems requiring split-power transmission in compact and hygienic environments. Its 3-shaft D1/2 layout provides a central input with two perpendicular outputs, allowing precise 90° redirection of torque.

With a 1:1 gear ratio, it transmits input speed and torque evenly to both outputs without reduction — ideal for applications requiring mirrored motion or parallel mechanical drive paths. The Ø20f7 shaft tolerance ensures tight, low-backlash integration for consistent servo and automation performance.

Crafted from EN 1.4301 stainless steel, the housing is corrosion-resistant and well suited for environments with regular cleaning or exposure to aggressive media. The unit supports up to 19 Nm nominal torque at 1400 RPM and continuous speeds up to 3000 RPM, making it a durable choice for dynamic automation systems

Typical applications:

• Hygienic servo conveyors with dual-side actuation

• Filling or capping machines with mirrored outputs

• Coordinated motion platforms in pharmaceutical or food production

• Compact hygienic automation modules requiring balanced output speed
