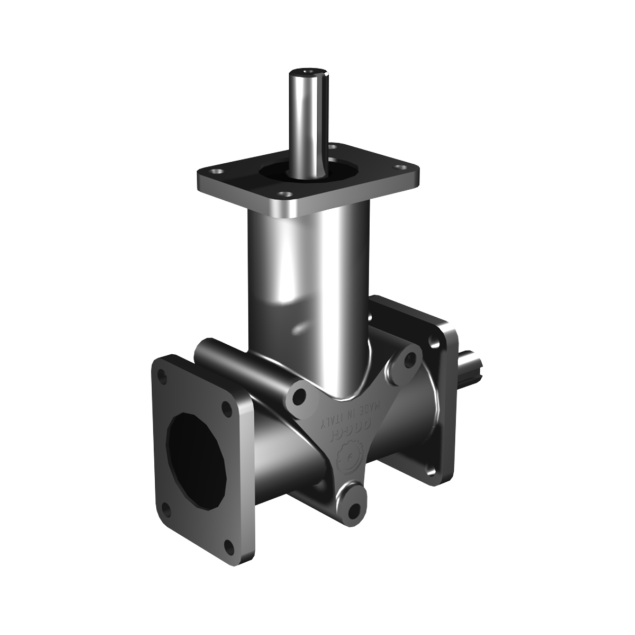

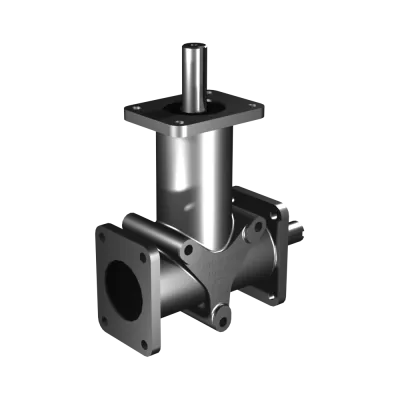

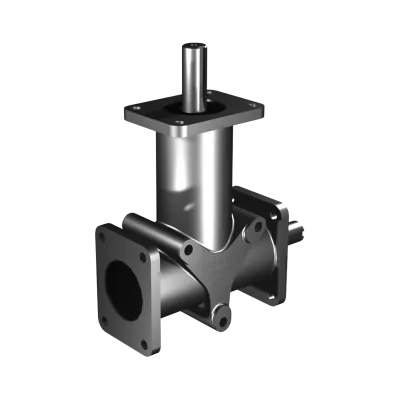

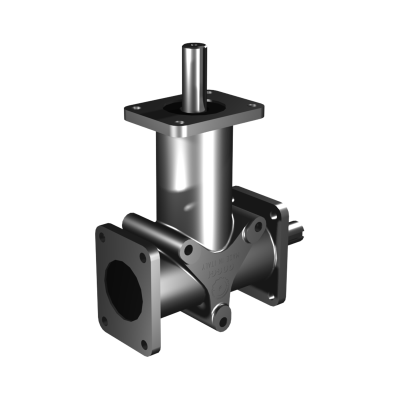

The Poggi right angle gearbox 5030, R1:2, D2, Ø20f7, 2-way, Stainless steel is a hygienic and compact transmission unit designed for split-output drive systems. The D2 shaft layout enables torque transfer from a central input to two opposite output shafts at a 90° angle, offering balanced power delivery in confined installations.

With a 1:2 gear ratio, it reduces output speed while enhancing torque — optimal for synchronized systems in processing, conveying, or automation. The Ø20f7 precision shaft ensures tight tolerance for backlash-sensitive couplings, essential for servo-controlled motion or light-duty mechanical alignment.

Manufactured in EN 1.4301 stainless steel, the housing meets hygiene and corrosion resistance demands, enabling use in food-grade, pharmaceutical, or washdown-prone equipment. Rated for up to 12 Nm nominal torque at 1400 RPM, this unit combines stainless durability with practical performance in low-speed, high-precision applications

Typical applications:

• Dual-output dosing systems in hygienic filling equipment

• Servo indexing conveyors with mirrored actuation

• Compact stainless automation cells

• Pharmaceutical processing machinery requiring split drive shafts
