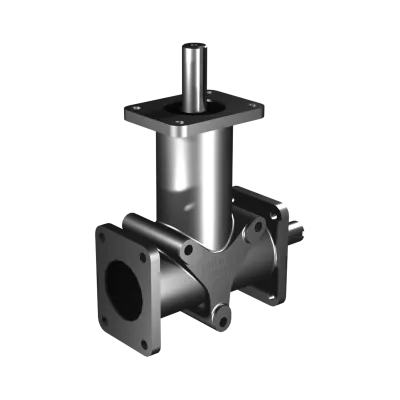

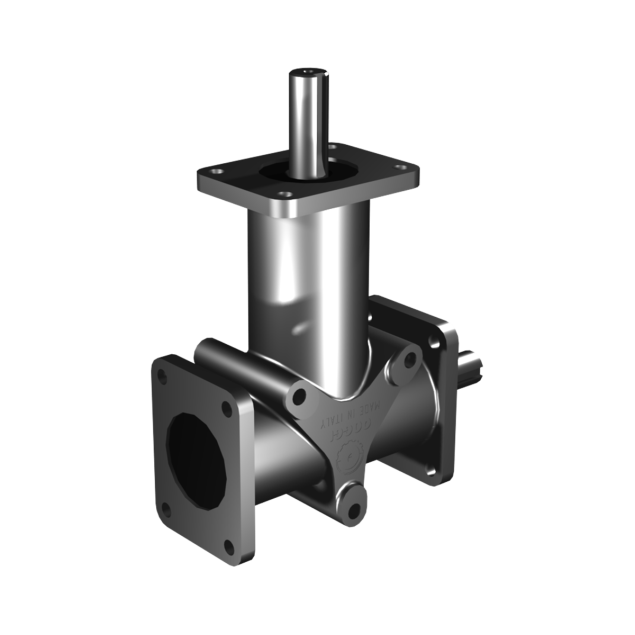

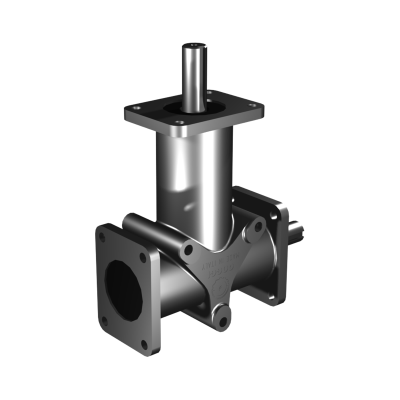

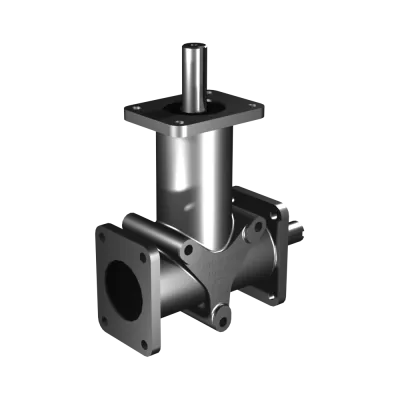

Poggi right angle gearbox 5030, R1:2, D1, Ø20f7, 2-way, Stainless steel
HV3045030121The Poggi right angle gearbox 5030, R1:2, D1, Ø20f7, 2-way, Stainless steel is designed for torque amplification in compact installations where hygiene, corrosion resistance, and precise mechanical transmission are essential. The 1:2 gear ratio reduces speed while doubling torque—well-suited for applications such as conveyor drives, indexing tables, or controlled rotary mechanisms.
Its D1 configuration provides a 90° redirection of motion between input and output. The Ø20f7 shaft offers a tight fit and minimal play, reducing backlash (15–30′) and supporting consistent torque transfer. Manufactured from EN 1.4301 stainless steel, this gearbox is ideal for cleanroom environments and areas subject to frequent washdowns.
It delivers 12 Nm torque at 1400 RPM, with a maximum speed capability of 1400 RPM, ensuring stable operation in hygienically demanding industrial environments.
Made to order
Expected shipment:
More Information
Description
The Poggi 5030 right-angle gearbox delivers 2-way output via Ø20f7 shafts in D1 configuration, with a 1:2 gear ratio. Housed in corrosion-resistant stainless steel housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear ratio: 1:2 (R1:2)
Reduces output speed and increases torque for controlled operations. -
Configuration: D1, 2-shaft layout
Transfers mechanical motion at 90° between shafts. -
Shaft diameter: Ø20f7
Secure and precise fit for stable rotation. -
Material: Stainless steel (EN 1.4301)
Corrosion-resistant and suitable for washdown environments. -
Backlash: 15–30′
-
Nominal torque: 12 Nm @ 1400 RPM
-
Maximum input speed: 1400 RPM
