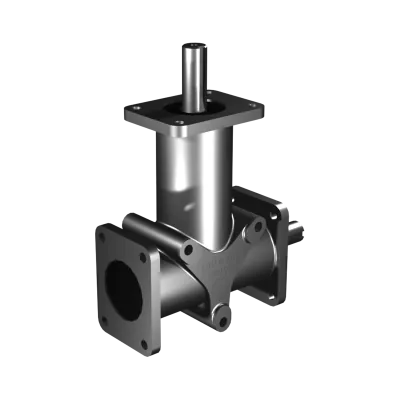

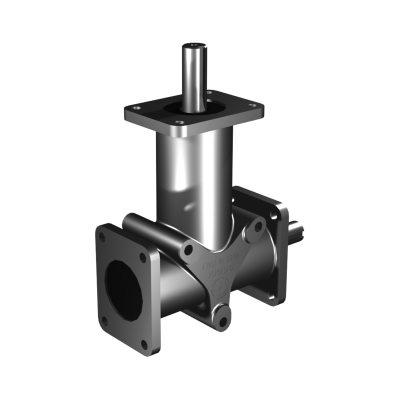

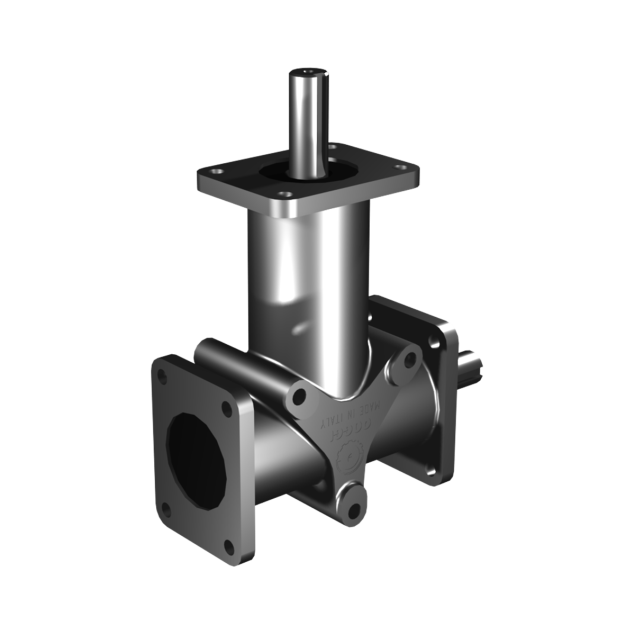

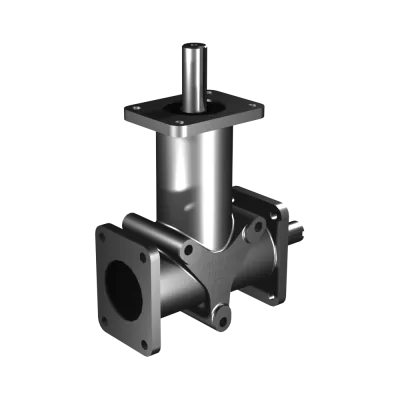

Poggi right angle gearbox 5030, R1:1, D2, Ø20f7, 2-way, Stainless steel
HV3045030112The Poggi right angle gearbox 5030 features a 1:1 gear ratio and D2 configuration, equipped with two Ø20f7 shafts. Designed for balanced torque transmission between two axes, it operates reliably at speeds up to 3000 RPM and provides a maximum torque of 19.0 Nm @ 1400 RPM. Made from stainless steel, this unit is ideal for industries requiring corrosion resistance and hygiene, such as food, pharma, or marine applications. A defined backlash range of 15'–30' secures repeatable accuracy in motion transfer.
Made to order
Expected shipment:
More Information
Description
With a compact design, the Poggi 5030 provides 2-way output via Ø20f7 shafts in D2 configuration, with a 1:1 gear ratio. Housed in AISI 316 stainless steel body, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 5030
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 19.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Stainless steel
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
