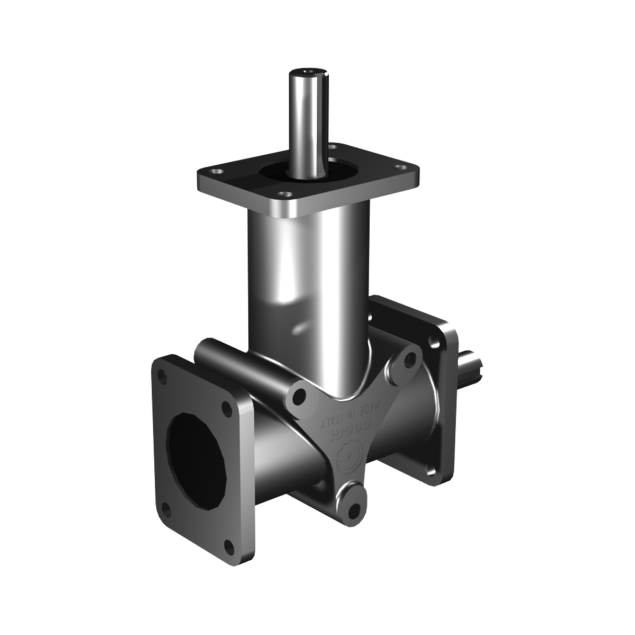

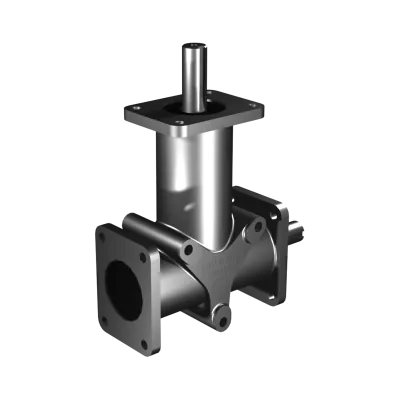

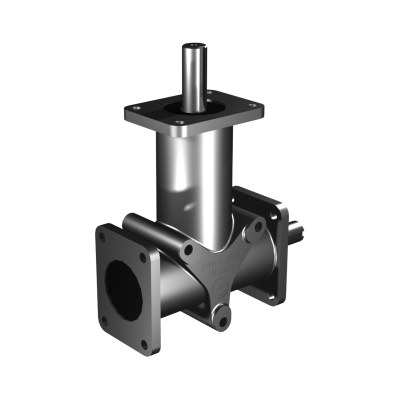

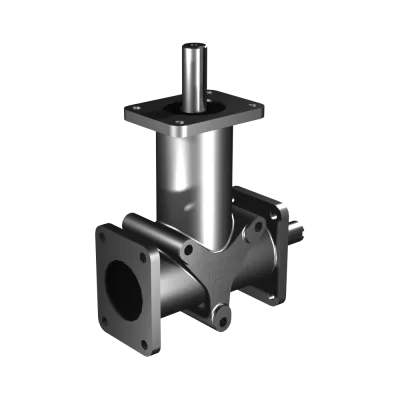

Poggi right angle gearbox 5030, R1:1, D1, Ø20f7, 2-way, Stainless steel
HV3045030111The Poggi right angle gearbox 5030 features a 1:1 gear ratio and D1 configuration with two Ø20f7 shafts, delivering up to 19.0 Nm @ 1400 RPM and operating at a maximum speed of 3000 RPM. Constructed in stainless steel, this gearbox offers high resistance to corrosion, making it an ideal solution for food-grade, chemical, or offshore applications. The 15'–30' backlash tolerance ensures repeatable precision, even under intensive operating conditions.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 5030 is ideal for 2-way output via Ø20f7 shafts in D1 configuration, with a 1:1 gear ratio. Housed in corrosion-resistant stainless steel housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 5030
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 19.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Stainless steel
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
