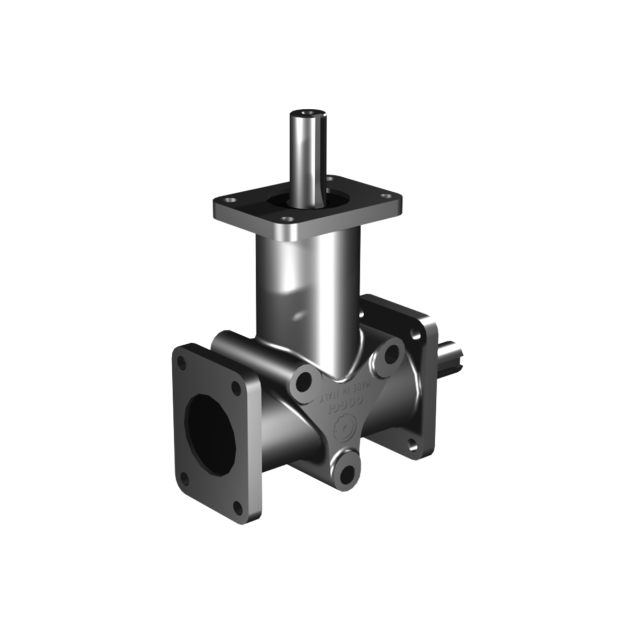

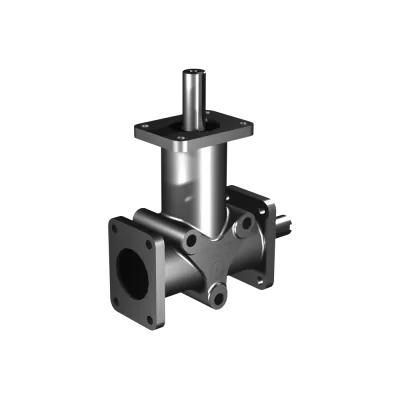

The Poggi right angle gearbox 5011, R1:2, D1, Ø15f7, 2-way, Stainless steel is a space-efficient transmission solution engineered for hygienic environments. Designed in a D1 layout, this two-shaft configuration allows torque redirection at 90°, making it ideal for compact machinery where input and output shafts need to be perpendicular.

With a 1:2 gear ratio, the gearbox reduces the output speed by half while doubling torque — well-suited for dosing applications, rotary actuators, or servo systems requiring controlled motion. The Ø15f7 precision shaft offers a tight fit for low-backlash connections and stable mechanical performance.

Constructed in EN 1.4301 stainless steel, the housing is corrosion-resistant and can be used in washdown zones, food processing, or pharmaceutical production. With a nominal torque of 4 Nm at 1400 RPM and max speed of 1400 RPM, this gearbox fits reliably into light-duty systems demanding hygienic compliance

Typical applications:

• Compact dosing units and liquid dispensers

• Food-safe packaging machines with low-speed actuation

• Stainless steel conveyors and modular drives

• Servo-driven pick-and-place heads requiring speed reduction
