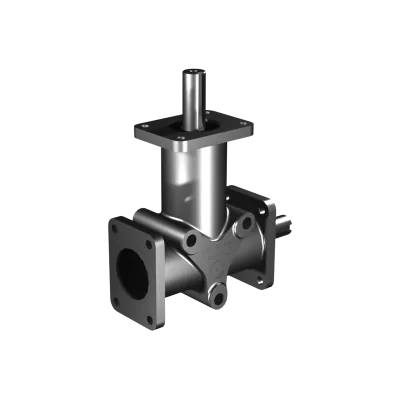

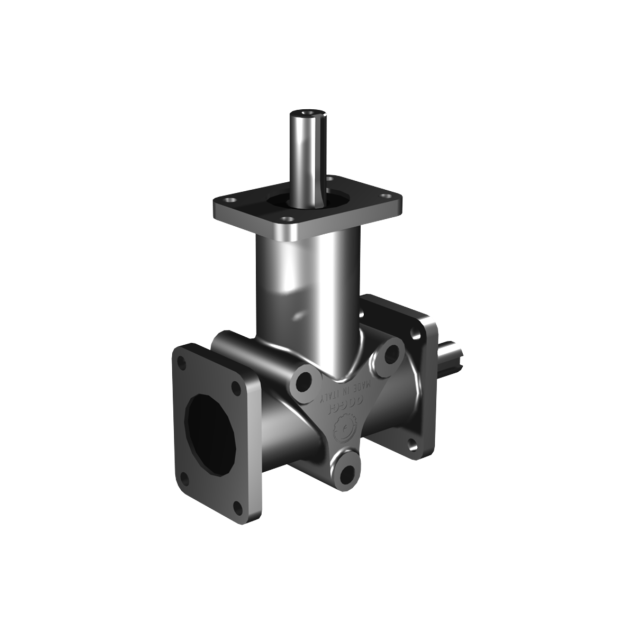

Poggi right angle gearbox 5011, R1:1, D2, Ø15f7, 2-way, Stainless steel
HV3045011112The Poggi right angle gearbox 5011 is designed with a 1:1 gear ratio in a D2 configuration with two Ø15f7 shafts, delivering 6.0 Nm @ 1400 RPM and operating up to 3000 RPM. Built entirely in stainless steel, it is tailored for industries with strict hygiene or corrosion-resistance demands such as food processing, pharmaceuticals, and marine applications. The backlash tolerance of 15'–30' ensures excellent repeatability, while the high mechanical integrity of stainless steel allows for reliable operation in aggressive environments.
Made to order
Expected shipment:
More Information
Description
The Poggi 5011 right-angle gearbox delivers 2-way output via Ø15f7 shafts in D2 configuration, with a 1:1 gear ratio. Housed in hygienic stainless steel construction, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 5011
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø15f7
-
Max torque @ 1400 RPM: 6.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Stainless steel
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
