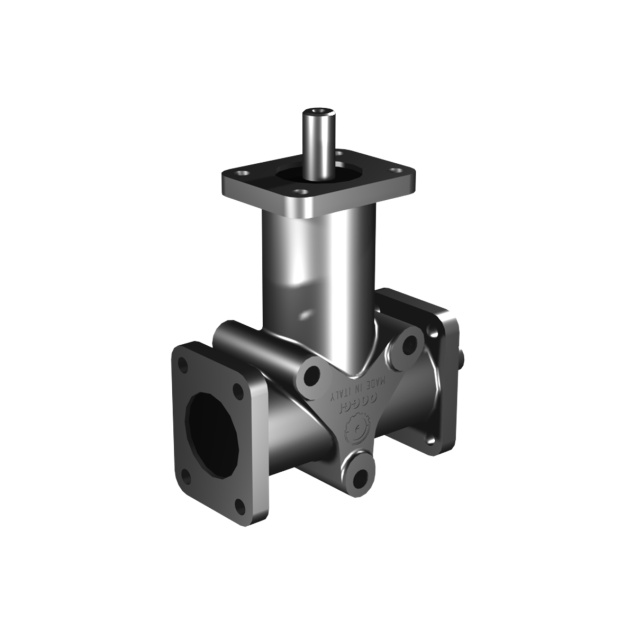

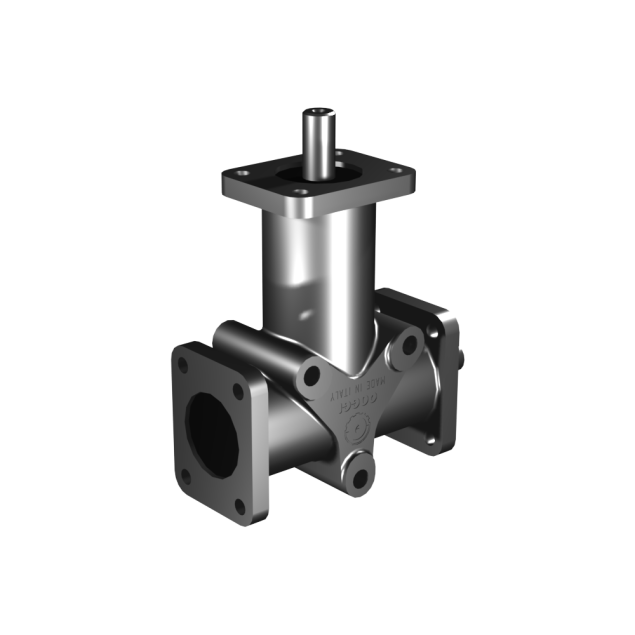

Poggi right angle gearbox 5000, R1:2, D2, Ø8f7, 2-way, Stainless steel
HV3045000122The Poggi right angle gearbox 5000, R1:2, D2, Ø8f7, 2-way, Stainless steel is built for cleanroom environments and space-saving mechanical layouts where output speed reduction is required. With a gear ratio of 1:2, the output shaft turns at half the input speed — ideal for increasing torque in rotary positioning systems, dosing units, or pick-and-place modules.
Its D2 configuration enables torque distribution in two directions at 90°, while the Ø8f7 stainless steel shaft ensures precise alignment and coupling with low mechanical backlash. Manufactured in EN 1.4301 stainless steel, this gearbox is fully washable and suited for industries with strict hygiene requirements.
With a nominal torque of 1.1 Nm at 1400 RPM and maximum input speed of 1400 RPM, it supports light-duty motion control with clean and consistent power output
Typical applications:
-
Hygienic dosing and filling equipment
-
Servo-driven mechanisms for speed reduction
-
Dual-output rotary stations in automated lines
-
Small conveyors requiring speed modulation
Made to order
Expected shipment:
More Information
Description
-
Gear ratio 1:2 (R1:2)
Output speed halved, torque increased — perfect for dosing or slow-rotation systems. -
D2 layout (two shafts at 90°)
Dual output allows torque distribution to two directions, useful in mirrored or symmetrical designs. -
Ø8f7 shaft tolerance
Precision fit for minimal backlash and high positional repeatability. -
Stainless steel housing (EN 1.4301)
Hygienic, corrosion-resistant, and compliant with food and pharmaceutical standards. -
Backlash: 15–30′
Suitable for standard precision requirements in servo-controlled systems. -
Nominal torque: 1.1 Nm @ 1400 RPM
Ideal for low-load but torque-sensitive mechanisms. -
Max input speed: 1400 RPM
Supports low- to mid-speed drive systems with consistent performance.
