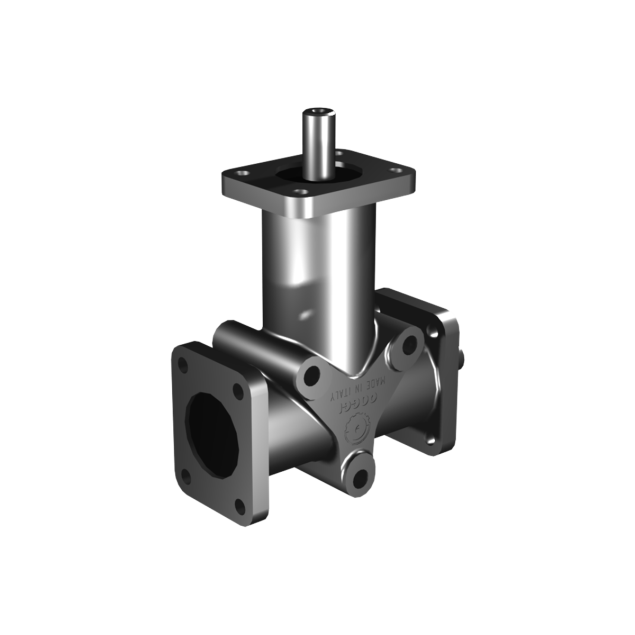

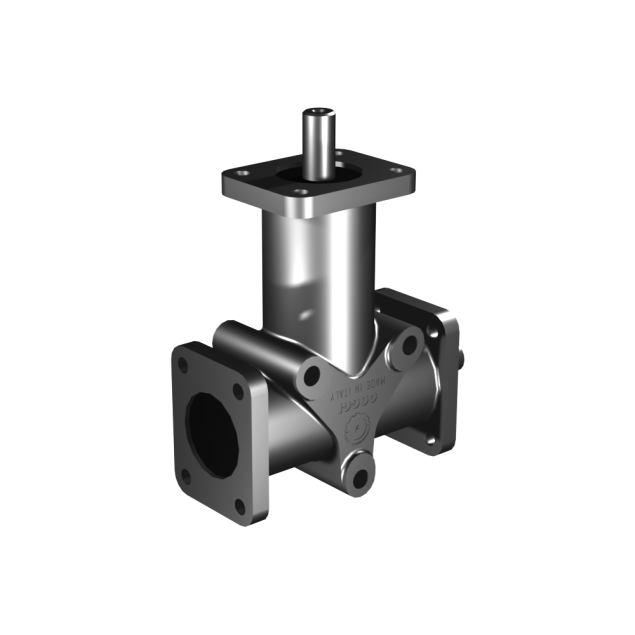

The Poggi right angle gearbox 5000, R1:1, D2, Ø8f7, 2-way, Stainless steel is designed to deliver consistent torque transfer in hygienic environments and installations with limited space. With a precise 1:1 gear ratio, this gearbox is engineered for applications requiring synchronized speed between the input and output shafts.

Its D2 configuration provides a 2-shaft layout at a 90° angle, ideal for redirecting power in dual-output systems such as packaging machinery, conveyors, or compact automation cells. The Ø8f7 stainless steel shaft ensures tight fit tolerances and is compatible with standard precision couplings, helping reduce backlash and wear.

Built from corrosion-resistant stainless steel (EN 1.4301) and sealed to ensure long service life in washdown environments, it meets the mechanical and hygienic requirements of industries such as food processing, pharmaceuticals, and cleanroom automation.

It supports speeds up to 3000 RPM and delivers a nominal torque of 1.6 Nm at 1400 RPM, with a standard backlash range of 15 to 30', making it suitable for light-duty but high-frequency operations

Typical applications:

• Stainless steel conveyor modules

• Automated filling or dosing equipment

• Servo-driven alignment or indexing systems

• Machinery in EHEDG-aligned production zones
