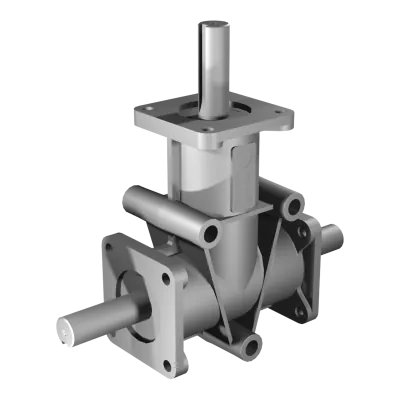

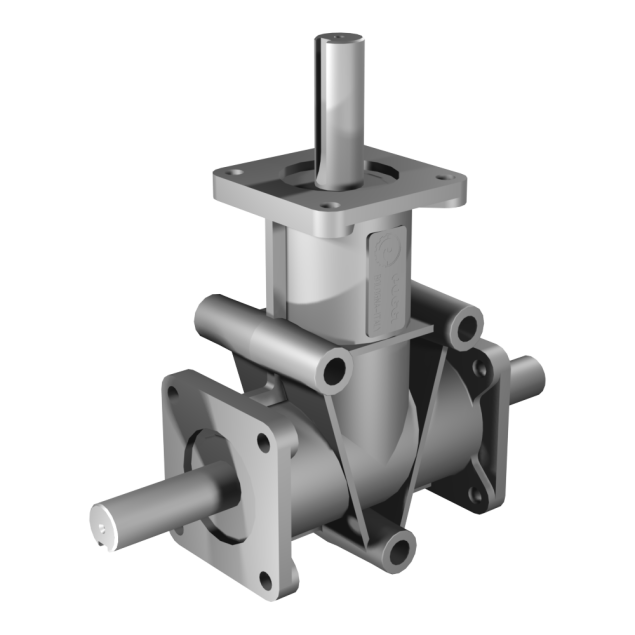

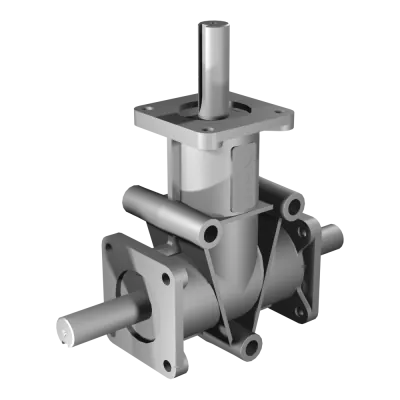

Poggi right angle gearbox 4033, R1:2, D1/2, Ø25f7, 3-way, Aluminium
HV3044033121The Poggi right angle gearbox 4033 features a 1:2 gear ratio and a D1/2 configuration, utilizing three Ø25f7 shafts for synchronized torque output. This makes it a reliable solution for parallel-driven machinery and multi-axis motion systems. Rated for 25.0 Nm @ 1400 RPM, the unit supports speeds up to 1400 RPM and is housed in robust, corrosion-resistant aluminium. The backlash tolerance of 15'–30' ensures consistent and accurate operation, even in demanding, repetitive tasks.
Made to order
Expected shipment:
More Information
Description
With a compact design, the Poggi 4033 provides 3-way output via Ø25f7 shafts in D1/2 configuration, with a 1:2 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4033
-
Gear ratio: 1:2
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø25f7
-
Max torque @ 1400 RPM: 25.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
