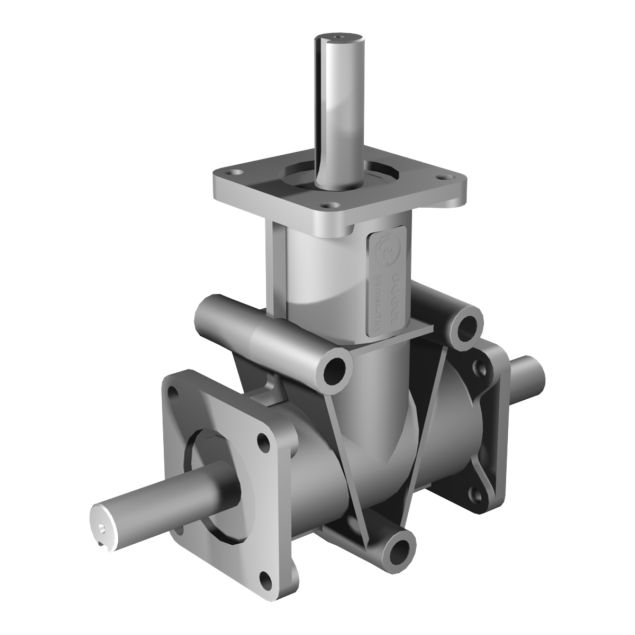

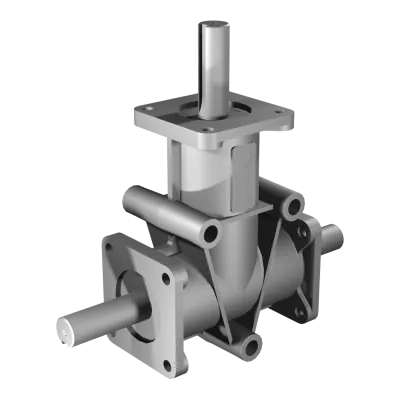

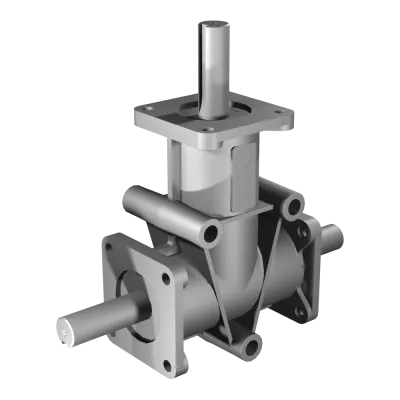

Poggi right angle gearbox 4033, R1:1, D1/2, Ø25f7, 3-way, Aluminium
HV3044033111The Poggi right angle gearbox 4033 is designed for efficient 90° power transmission in multi-output systems. With a 1:1 gear ratio, D1/2 configuration, and three Ø25f7 shafts, this gearbox enables mirrored or synchronized drive setups. The aluminium housing is both lightweight and corrosion-resistant, making it suitable for demanding industrial use. It delivers up to 44.0 Nm @ 1400 RPM, supports continuous operation up to 3000 RPM, and features a backlash specification of 15'–30', ensuring consistent performance in automation and motion control systems.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 4033 is ideal for 3-way output via Ø25f7 shafts in D1/2 configuration, with a 1:1 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4033
-
Gear ratio: 1:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø25f7
-
Max torque @ 1400 RPM: 44.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
