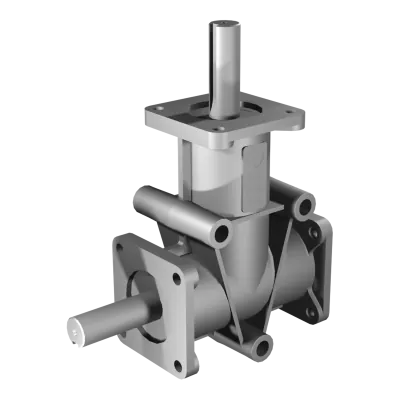

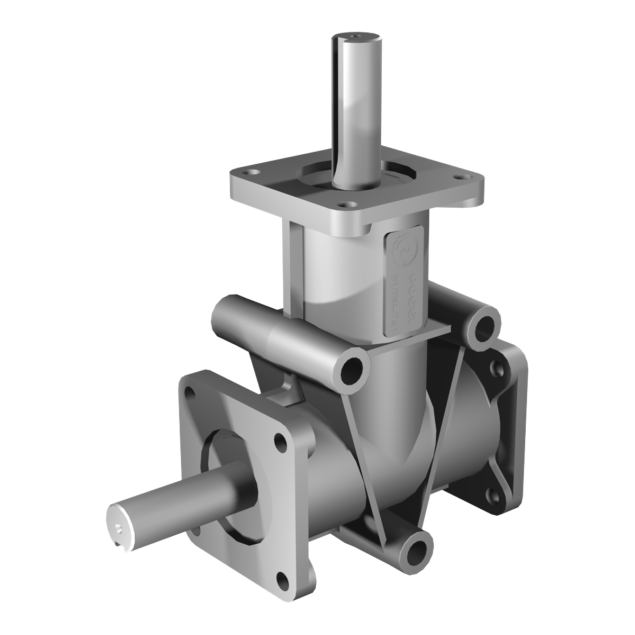

Poggi right angle gearbox 4032, R1:1, D1, Ø25f7, 2-way, Aluminium
HV3044032111The Poggi right angle gearbox 4032 delivers robust power with a 1:1 gear ratio in a D1 configuration featuring two Ø25f7 shafts. Designed for demanding torque transmission, it handles up to 44.0 Nm @ 1400 RPM and supports a maximum speed of 3000 RPM. Its configuration is ideal for parallel-driven systems requiring stable bidirectional operation. Constructed with a lightweight yet durable aluminium housing, it ensures longevity under high load cycles. The specified backlash range of 15'–30' supports consistent motion accuracy in automated machinery.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 4032 is ideal for 2-way output via Ø25f7 shafts in D1 configuration, with a 1:1 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4032
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø25f7
-
Max torque @ 1400 RPM: 44.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
