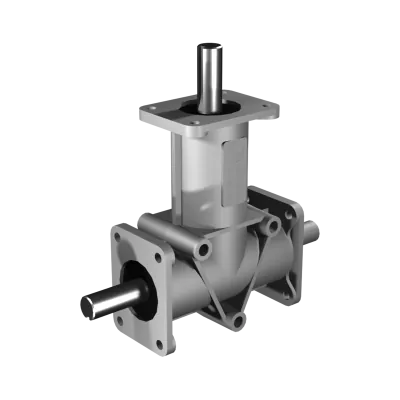

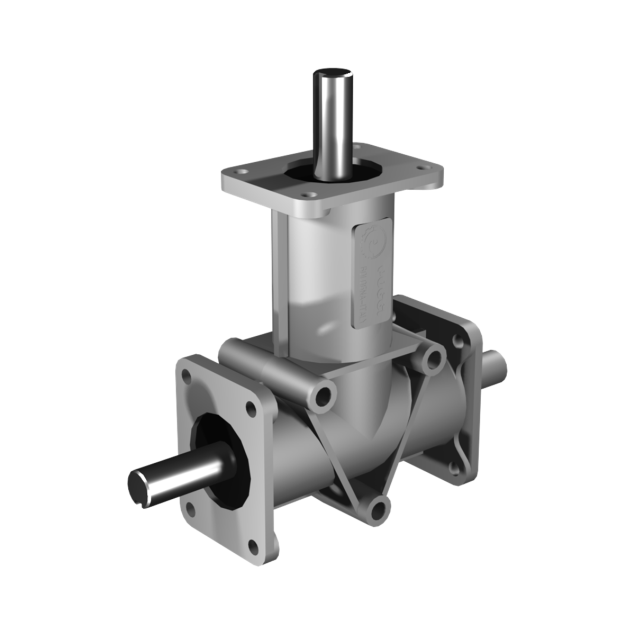

Poggi right angle gearbox 4031, R1:2, D1/2, Ø20f7, 3-way, Aluminium
HV3044031121The Poggi right angle gearbox 4031 delivers a 1:2 gear ratio in D1/2 configuration with three Ø20f7 shafts, allowing effective torque distribution across multiple outputs. Supporting 16.0 Nm @ 1400 RPM and operating up to 1400 RPM, this gearbox is ideal for systems requiring synchronized motion across three axes. The aluminium housing ensures a lightweight, corrosion-resistant build, while the defined backlash range of 15'–30' enables repeatable precision in demanding mechanical environments.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 4031 is ideal for 3-way output via Ø20f7 shafts in D1/2 configuration, with a 1:2 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4031
-
Gear ratio: 1:2
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 16.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
