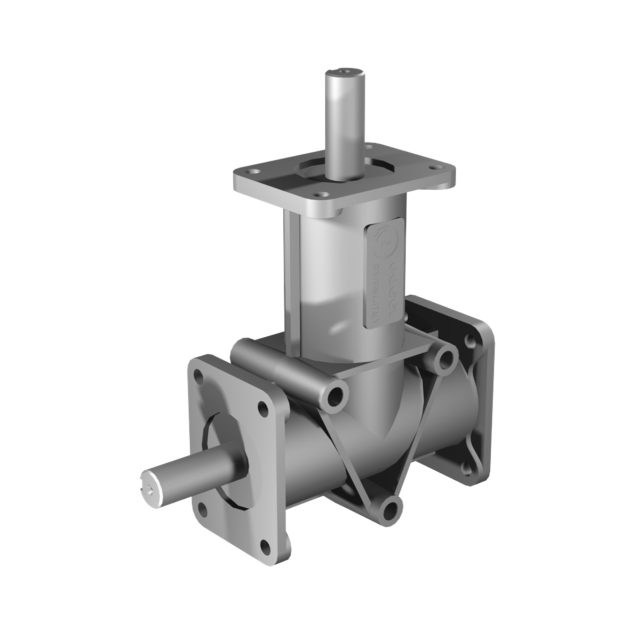

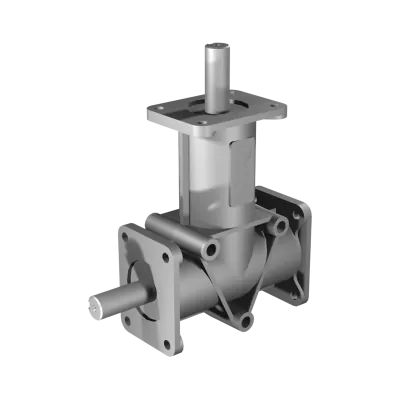

Poggi right angle gearbox 4030, R1:2, D1, Ø20f7, 2-way, Aluminium
HV3044030121The Poggi right angle gearbox 4030 with a 2:1 gear ratio and D1 configuration is engineered for speed reduction and torque multiplication in demanding drive systems. Equipped with two Ø20f7 shafts, it supports precise input-output alignment in space-constrained mechanical setups. The aluminium housing provides robust protection while keeping weight to a minimum. Rated for 16.0 Nm @ 1400 RPM, it maintains operational speeds up to 1400 RPM with a backlash tolerance of 15'–30', suitable for automation tasks requiring consistent performance.
Made to order
Expected shipment:
More Information
Description
The Poggi 4030 right-angle gearbox delivers 2-way output via Ø20f7 shafts in D1 configuration, with a 1:2 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4030
-
Gear ratio: 2:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 16.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
