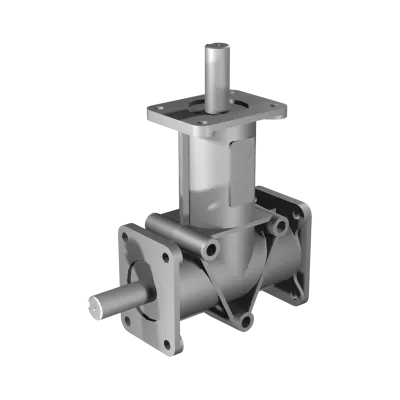

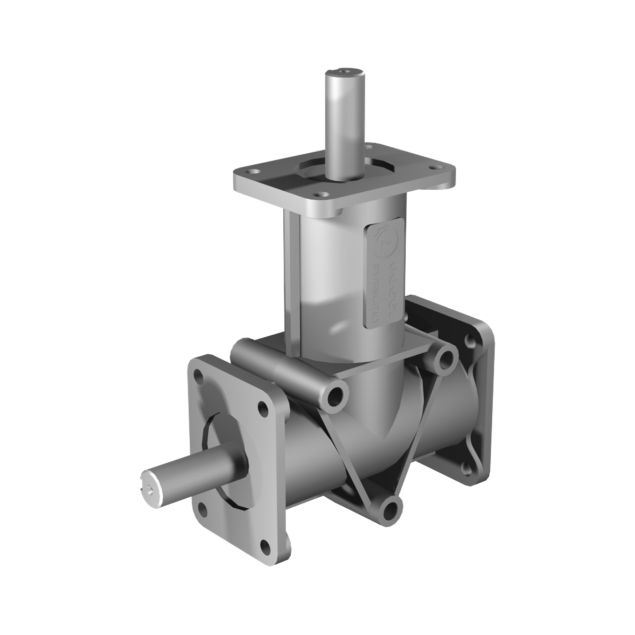

Poggi right angle gearbox 4030, R1:1, D2, Ø20f7, 2-way, Aluminium
HV3044030112The Poggi right angle gearbox 4030 in D2 configuration is a high-performance solution for mirrored or dual-output drives in compact systems. With a 1:1 gear ratio and two Ø20f7 output shafts, this gearbox is ideal for parallel power transmission. The aluminium housing ensures lightweight construction and excellent corrosion resistance. Capable of delivering up to 27.2 Nm @ 1400 RPM, and running at speeds up to 3000 RPM, it maintains a backlash of 15'–30', making it a robust choice for industrial applications requiring synchronized output.
Made to order
Expected shipment:
More Information
Description
With a compact design, the Poggi 4030 provides 2-way output via Ø20f7 shafts in D2 configuration, with a 1:1 gear ratio. Housed in lightweight aluminium housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4030
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø20f7
-
Max torque @ 1400 RPM: 27.2 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
