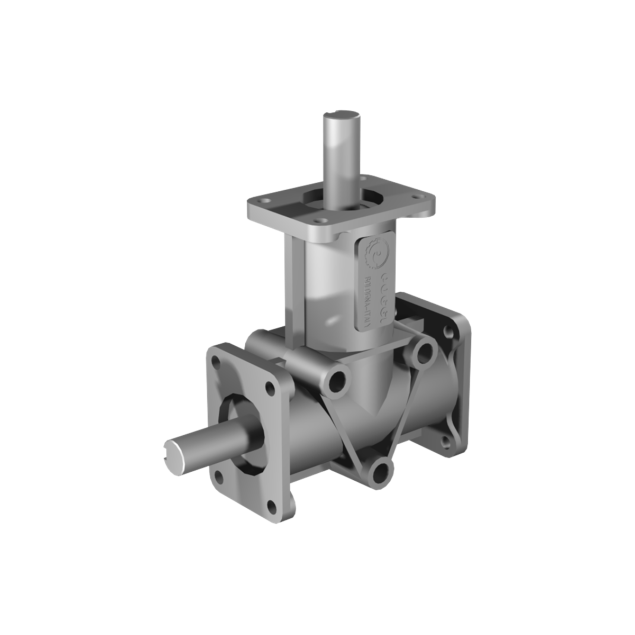

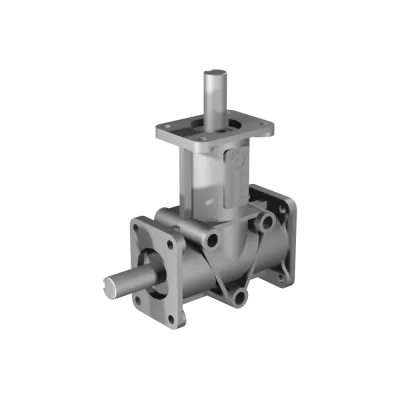

Poggi right angle gearbox 4011, R1:2, D1, Ø15f7, 2-way, Aluminium
HV3044011121The Poggi right angle gearbox 4011 with a 2:1 gear ratio is designed for effective speed reduction and torque increase in compact setups. With a D1 configuration and two Ø15f7 shafts, it enables direct input-output alignment in limited-space environments. The aluminium housing ensures high corrosion resistance and low weight. Rated for up to 4.5 Nm @ 1400 RPM, the unit runs efficiently at speeds up to 1400 RPM, and features a backlash of 15'–30', ideal for moderate-precision drive systems.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 4011 is ideal for 2-way output via Ø15f7 shafts in D1 configuration, with a 1:2 gear ratio. Housed in robust aluminium design, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4011
-
Gear ratio: 2:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø15f7
-
Max torque @ 1400 RPM: 4.5 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
