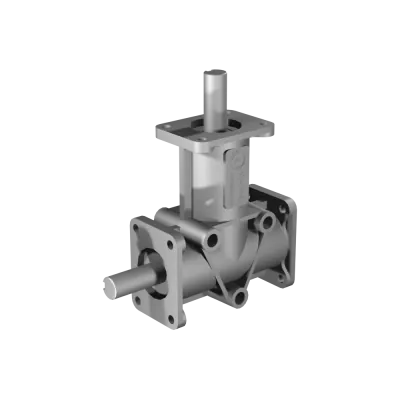

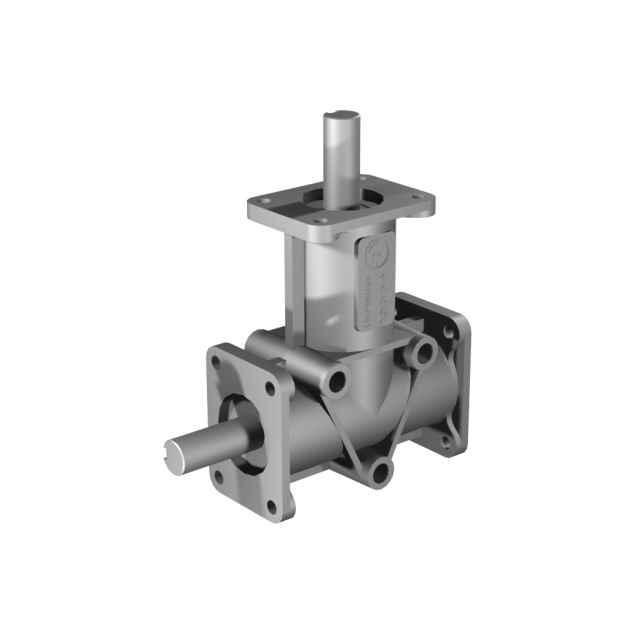

Poggi right angle gearbox 4011, R1:1, D2, Ø15f7, 2-way, Aluminium
HV3044011112The Poggi right angle gearbox 4011 offers a 1:1 gear ratio in a D2 configuration with two Ø15f7 shafts, delivering 8.8 Nm @ 1400 RPM and supporting speeds up to 3000 RPM. Ideal for mirrored-output applications, this gearbox provides excellent repeatability and smooth torque transmission across dual axes. The aluminium housing ensures a lightweight build with superior corrosion resistance. Its defined backlash range of 15'–30' makes it well-suited for automated systems that require precision and high duty cycles.
Made to order
Expected shipment:
More Information
Description
Built for durability, the Poggi 4011 is ideal for 2-way output via Ø15f7 shafts in D2 configuration, with a 1:1 gear ratio. Housed in compact aluminium casing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4011
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø15f7
-
Max torque @ 1400 RPM: 8.8 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
