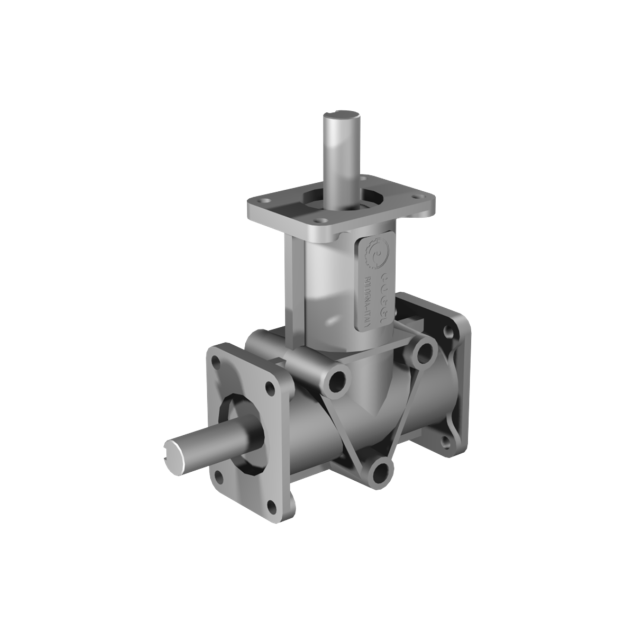

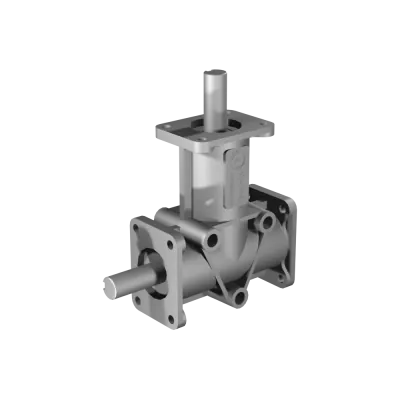

Poggi right angle gearbox 4011, R1:1, D1, Ø15f7, 2-way, Aluminium
HV3044011111The Poggi right angle gearbox 4011 is a compact and efficient solution for 90° torque transmission in two-shaft configurations. With a 1:1 gear ratio, D1 configuration, and two Ø15f7 shafts, this gearbox is ideal for straightforward input-output arrangements. The aluminium housing ensures strength, corrosion resistance, and low weight. Capable of delivering up to 8.8 Nm @ 1400 RPM, it supports high-speed operation up to 3000 RPM with a backlash of 15'–30', making it well-suited for dynamic and space-limited automation tasks.
Made to order
Expected shipment:
More Information
Description
With a compact design, the Poggi 4011 provides 2-way output via Ø15f7 shafts in D1 configuration, with a 1:1 gear ratio. Housed in robust aluminium design, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4011
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø15f7
-
Max torque @ 1400 RPM: 8.8 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
