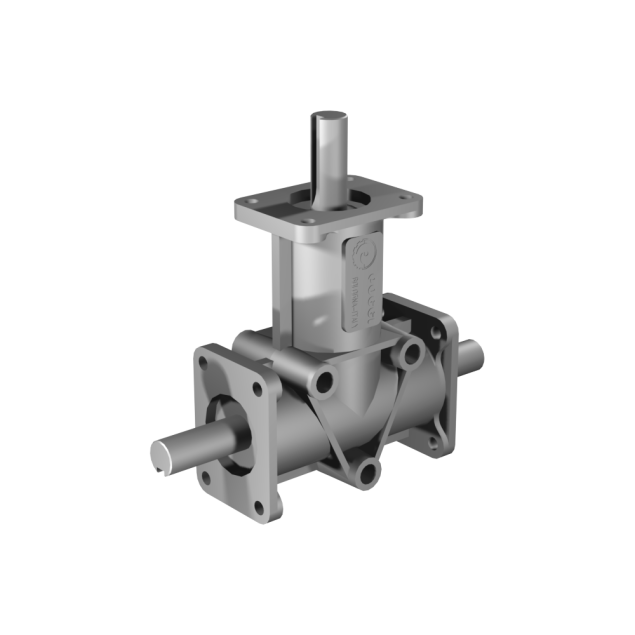

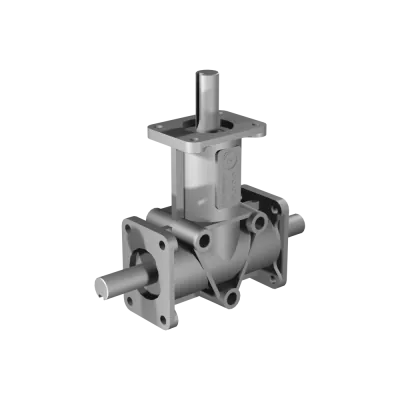

Poggi right angle gearbox 4008, R1:1, D1/2, Ø15f7, 3-way, Aluminium

HV3044008111

The Poggi right angle gearbox 4008 is built for compact applications where high-speed performance and space-saving installation are essential. It features a 1:1 gear ratio and a D1/2 configuration with three Ø15f7 shafts, offering multiple output options for mirrored or synchronized drives. Its aluminium housing is lightweight and resistant to corrosion, ideal for continuous industrial use. The gearbox supports up to 8.8 Nm @ 1400 RPM, with a maximum speed of 3000 RPM and a backlash range of 15'–30', ensuring precision in light-to-medium duty automation environments.

€212.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

With a compact design, the Poggi 4008 provides 3-way output via Ø15f7 shafts in D1/2 configuration, with a 1:1 gear ratio. Housed in robust aluminium design, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.

Gear type: Right angle gearbox
Model: Poggi 4008
Gear ratio: 1:1
Shaft configuration: D1/2 (3 shafts)
Shaft diameter: Ø15f7
Max torque @ 1400 RPM: 8.8 Nm
Max speed: 3000 RPM
Housing material: Aluminium
Backlash: Normal 15'–30'
Brand: Poggi (Italy)
