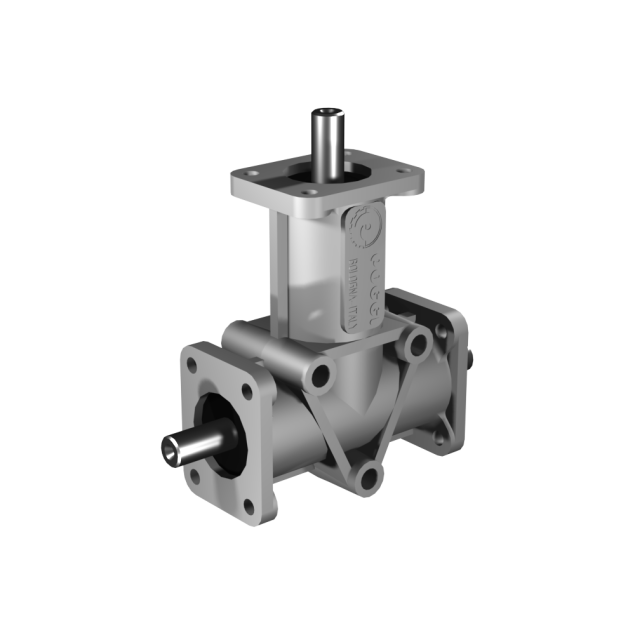

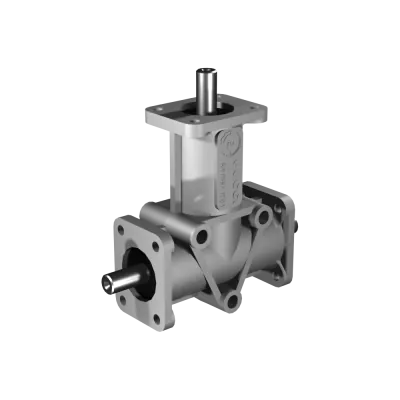

Poggi right angle gearbox 4002, R1:2, D1/2, Ø8h7, 3-way, Aluminium
HV3044002121The Poggi right angle gearbox 4002 combines a 2:1 gear ratio with a D1/2 configuration, distributing output via three Ø8h7 shafts. Designed for synchronized systems where multiple shaft outputs are required, it delivers 1.2 Nm @ 1400 RPM and operates up to 1400 RPM. Its lightweight aluminium housing ensures corrosion resistance and installation versatility. A backlash of 15'–30' allows for repeatable precision in automation and micro-mechanical assemblies.
Made to order
Expected shipment:
More Information
Description
The Poggi 4002 gearbox is designed for a 3-way layout with a 1:2 gear ratio and Ø8h7 shaft interfaces (D1/2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4002
-
Gear ratio: 2:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 1.2 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
