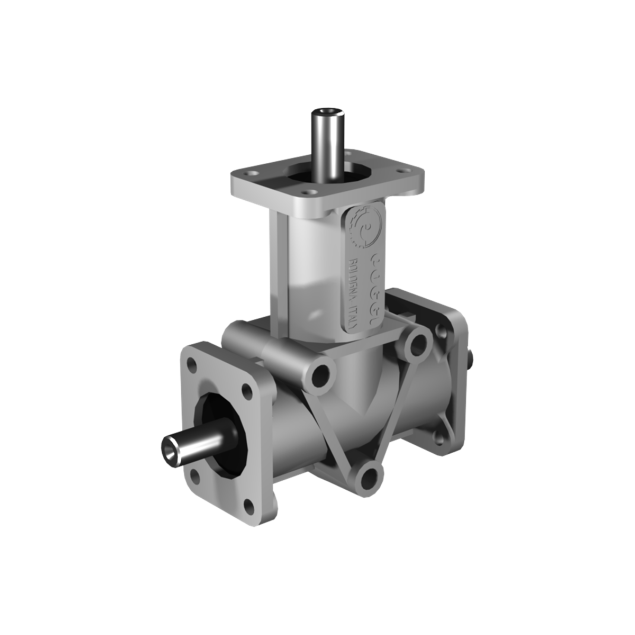

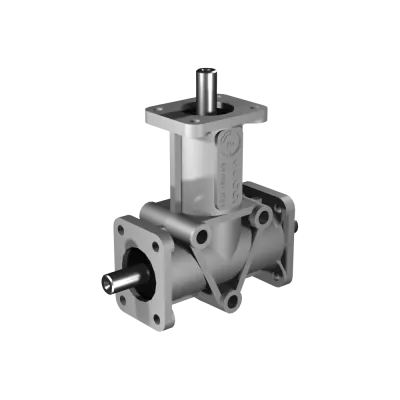

Poggi right angle gearbox 4002, R1:1, D1/2, Ø8h7, 3-way, Aluminium
HV3044002111The Poggi right angle gearbox 4002 is a compact and high-speed solution for transmitting power at 90° in tight spaces. Featuring a 1:1 gear ratio and D1/2 configuration, this model is equipped with three Ø8h7 precision shafts, supporting flexible mirrored or synchronous setups. Its aluminium housing offers excellent corrosion resistance and low weight. The gearbox delivers up to 2.4 Nm @ 1400 RPM, with a maximum speed of 3000 RPM, and a backlash range of 15'–30', making it suitable for dynamic, medium-precision automation tasks.
Made to order
Expected shipment:
More Information
Description
Poggi’s 4002 is ideal when you need a 3-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D1/2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4002
-
Gear ratio: 1:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø8h7
-
Max torque: 2.4 Nm @ 1400 RPM
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
