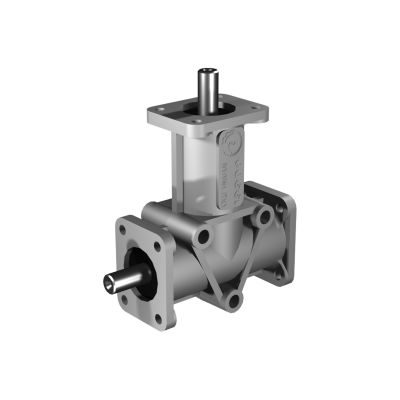

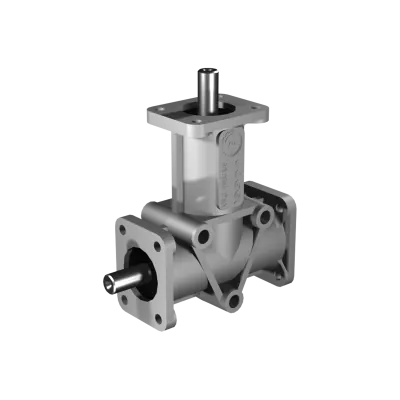

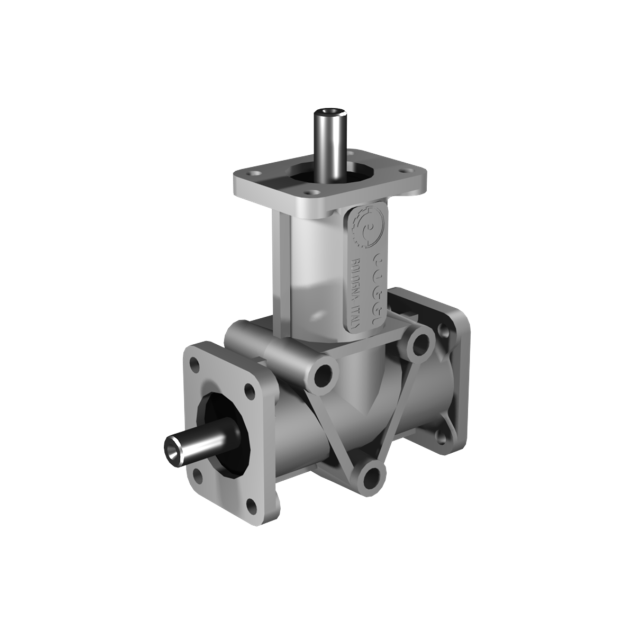

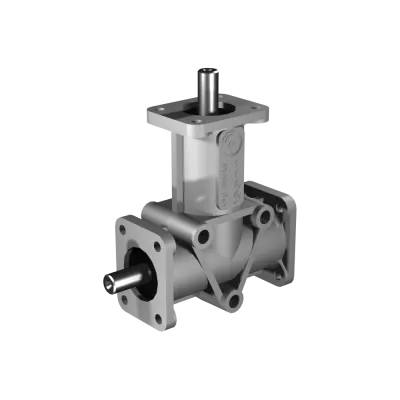

Poggi right angle gearbox 4000, R1:2, D2, Ø8h7, 2-way, Aluminium
HV3044000122The Poggi right angle gearbox 4000 in D2 configuration offers a 2:1 gear ratio and two Ø8h7 shafts, optimized for mirrored dual-output setups where torque multiplication and precision matter. Delivering 1.2 Nm @ 1400 RPM with a maximum speed of 1400 RPM, it is suited for high-precision positioning and miniature automation tasks. Its aluminium housing provides lightweight strength and corrosion resistance, while the backlash of 15'–30' ensures stable and repeatable operation.
Made to order
Expected shipment:
More Information
Description
The Poggi 4000 gearbox is designed for a 2-way layout with a 1:2 gear ratio and Ø8h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4000
-
Gear ratio: 2:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 1.2 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
