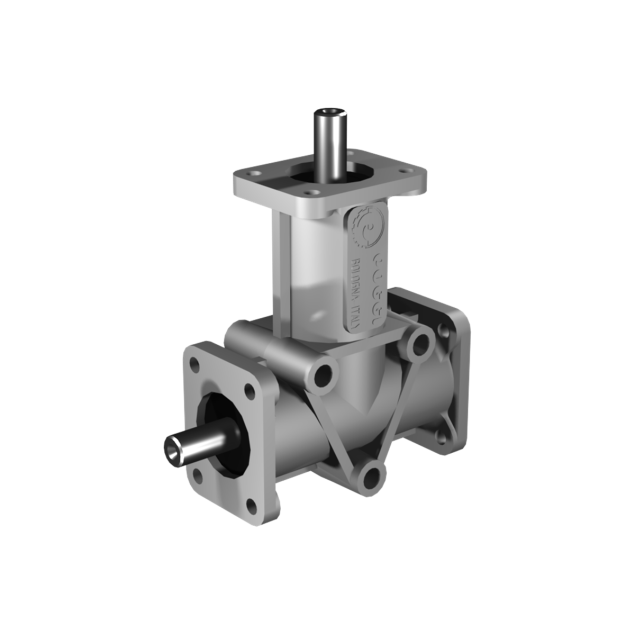

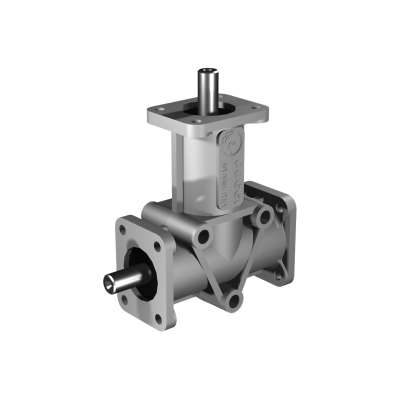

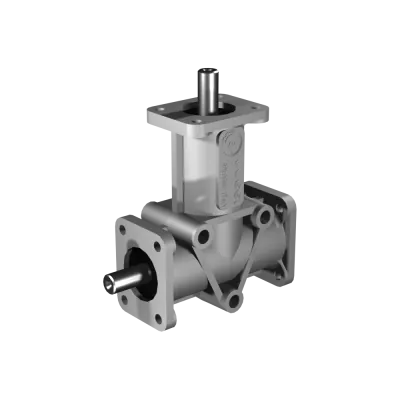

Poggi right angle gearbox 4000, R1:2, D1, Ø8h7, 2-way, Aluminium
HV3044000121The Poggi right angle gearbox 4000 with a 2:1 gear ratio in D1 configuration and two Ø8h7 shafts is built for compact systems requiring torque step-up and speed reduction. With a rated torque of 1.2 Nm @ 1400 RPM and a maximum speed of 1400 RPM, this model is suitable for precision tasks in lightweight automation, sensor actuation, and micro-positioning. The aluminium housing offers corrosion protection and installation flexibility. A backlash specification of 15'–30' supports repeatable motion in sensitive systems.
Made to order
Expected shipment:
More Information
Description
Model 4000 from Poggi offers a 2-way layout with a 1:2 gear ratio and Ø8h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4000
-
Gear ratio: 2:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 1.2 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
