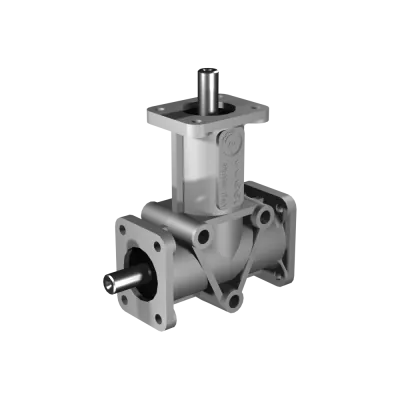

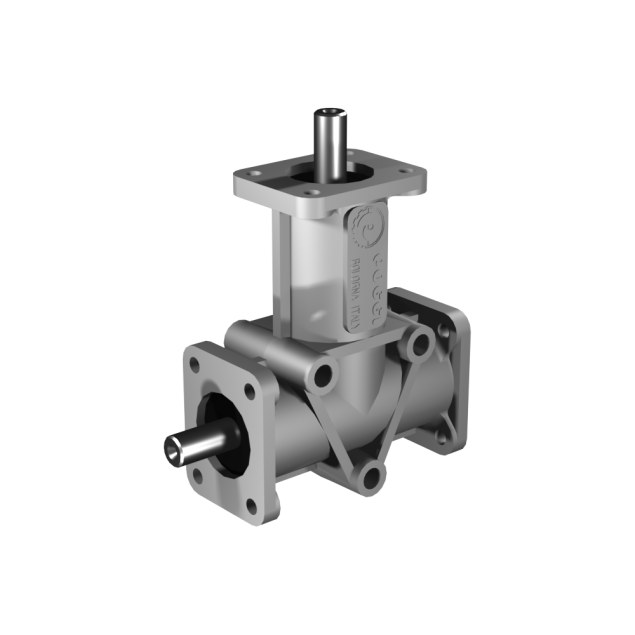

Poggi right angle gearbox 4000, R1:1, D2, Ø8h7, 2-way, Aluminium
HV3044000112The Poggi right angle gearbox 4000 is built for micro-precision applications, offering a 1:1 gear ratio in a D2 configuration with two Ø8h7 shafts. Delivering up to 2.4 Nm @ 1400 RPM and rated for 3000 RPM, it is well-suited for compact assemblies in automation, measurement systems, and lightweight robotics. Its aluminium housing ensures corrosion resistance and weight reduction, and a backlash specification of 15'–30' ensures consistent accuracy in repetitive operations.
Made to order
Expected shipment:
More Information
Description
Poggi’s 4000 is ideal when you need a 2-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 4000
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 2.4 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
