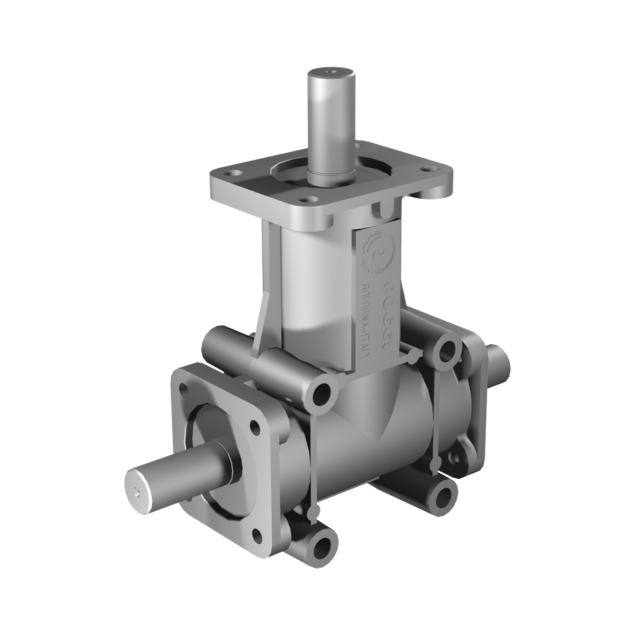

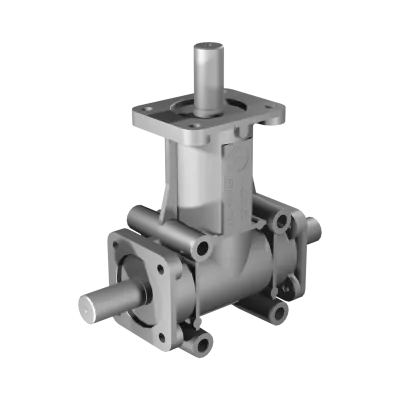

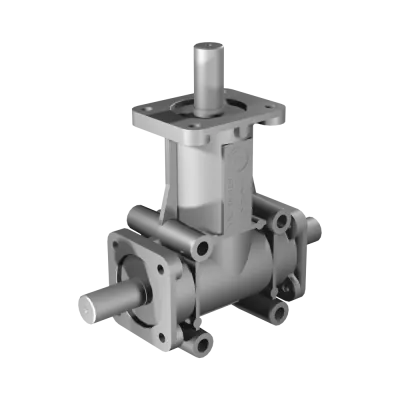

Poggi right angle gearbox 2033, R1:3, D1/2, Ø24h7, 3-way, Aluminium
HV3042033131The Poggi right angle gearbox 2033 with a 3:1 gear ratio and D1/2 configuration is built for applications requiring multi-shaft output and compact torque transfer. Featuring three Ø24h7 shafts, this gearbox provides versatile power distribution in both mirrored and synchronized configurations. Its aluminium housing is corrosion-resistant and lightweight, making it suitable for demanding environments. With a rated torque of 23.5 Nm at 400 RPM and a max speed of 1000 RPM, it’s engineered for durability and consistent performance. The backlash is specified as 15'–30', meeting general automation tolerances.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2033 delivers a 3-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2033
-
Gear ratio: 3:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 23.5 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
