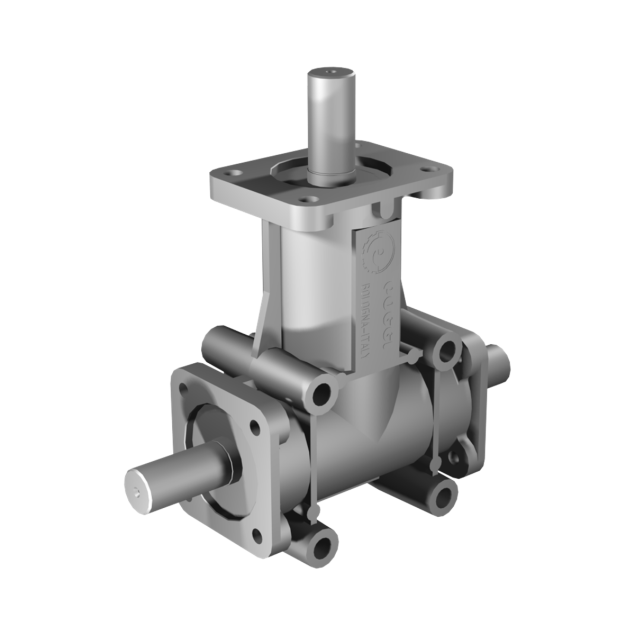

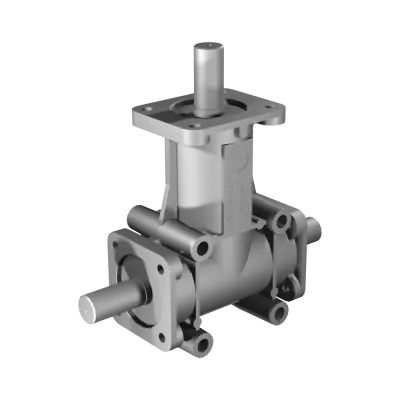

Poggi right angle gearbox 2033, R1:2, D1/2, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042033121SThe Poggi right angle gearbox 2033 with a 2:1 gear ratio and D1/2 configuration is designed for systems requiring multiple output directions in compact footprints. With three shafts and Ø24h7 diameter, this model supports flexible drive setups where synchronized or dual-output functionality is needed. Its precision-cast aluminium housing ensures strength with minimal weight. The gearbox delivers up to 28 Nm at 1400 RPM and operates at speeds up to 1400 RPM, making it a reliable solution for dynamic motion control applications.
Made to order
Expected shipment:
More Information
Description
The Poggi 2033 gearbox is designed for a 3-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2033
-
Gear ratio: 2:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 28 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
