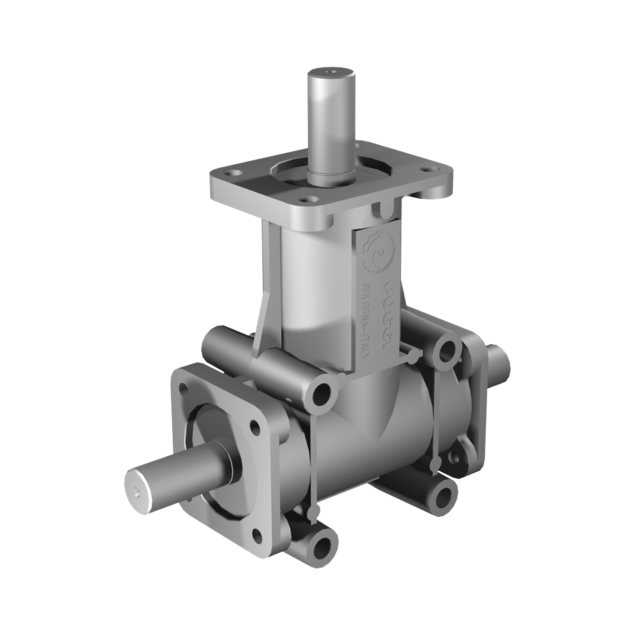

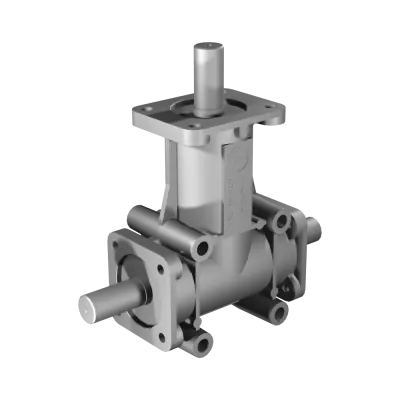

Poggi right angle gearbox 2033, R1:1, D1/2, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042033111SPoggi 2033 right-angle gearbox, R1:1, Ø24h7, 3-way, D1/2 with reduced backlash for high-precision operation. Featuring a compact and robust aluminium casing — suited for modern automation setups.
Made to order
Expected shipment:
More Information
Description

Poggi’s 2033 is ideal when you need a 3-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
Downloads
