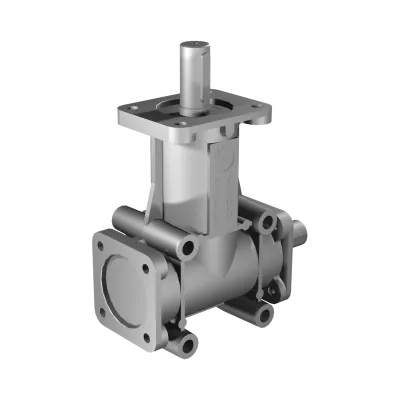

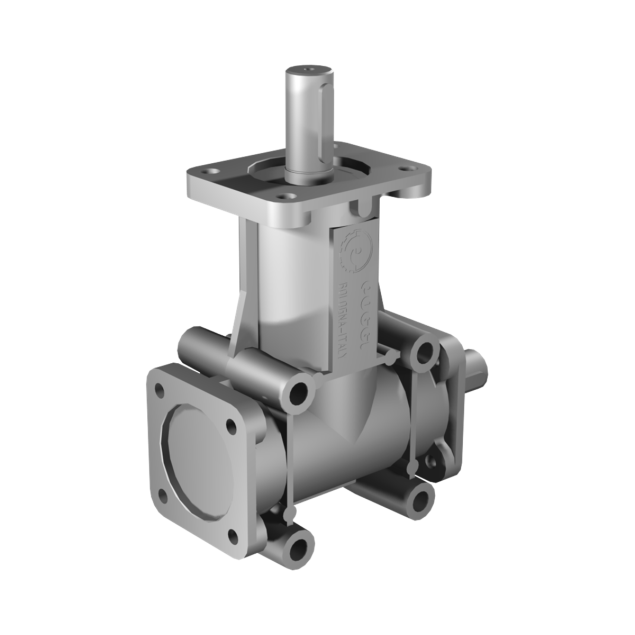

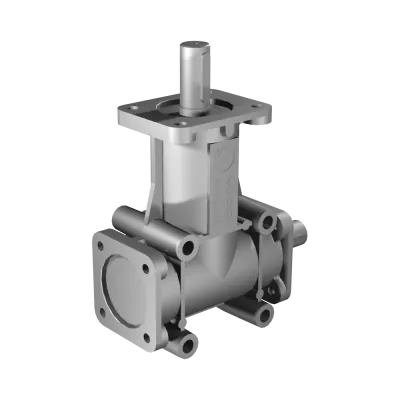

Poggi right angle gearbox 2032, R1:3, D2, Ø24h7, 2-way, Reduced backlash, Aluminium
HV3042032132SThe Poggi right angle gearbox 2032, with a 3:1 gear ratio and D2 configuration, is ideal for torque amplification and dual-output applications. Equipped with two Ø24h7 output shafts, it enables parallel or mirrored motion output in compact systems. The corrosion-resistant aluminium housing supports up to 23.5 Nm of torque at 400 RPM and operates reliably at speeds up to 1000 RPM. This gearbox is a flexible solution for use in automation setups where compactness and efficiency are essential.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2032 delivers a 2-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 3:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 23.5 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
