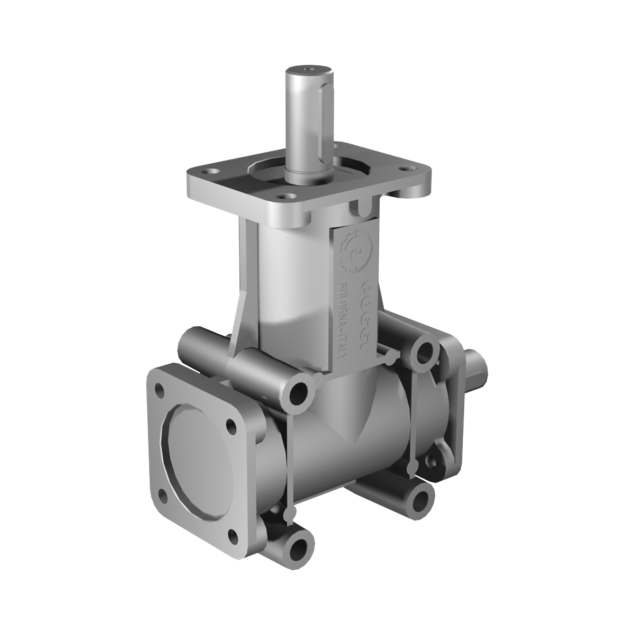

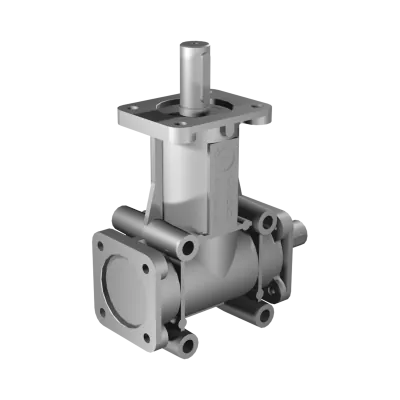

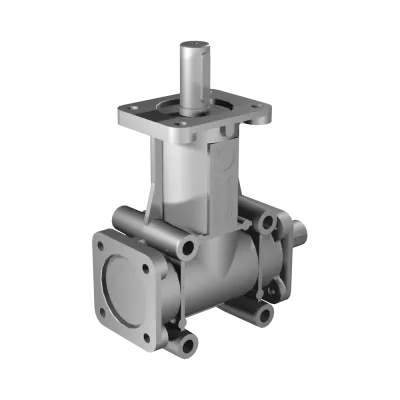

Poggi right angle gearbox 2032, R1:3, D1, Ø24h7, 2-way, Aluminium
HV3042032131The Poggi right angle gearbox 2032 with a 3:1 gear ratio and D1 configuration is engineered for torque amplification and speed reduction in compact drive systems. Featuring two Ø24h7 shafts, this gearbox ensures precise power transfer in space-constrained applications. Its robust aluminium housing offers durability and corrosion resistance, while the unit delivers a maximum torque of 23.5 Nm at 400 RPM and supports speeds up to 1000 RPM. The standard backlash of 15'–30' meets typical industrial automation requirements.
Made to order
Expected shipment:
More Information
Description
Model 2032 from Poggi offers a 2-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D1). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 3:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 23.5 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
