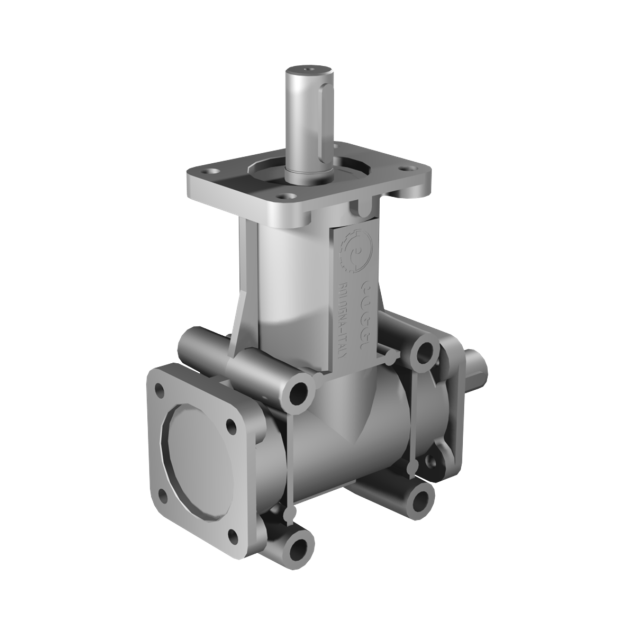

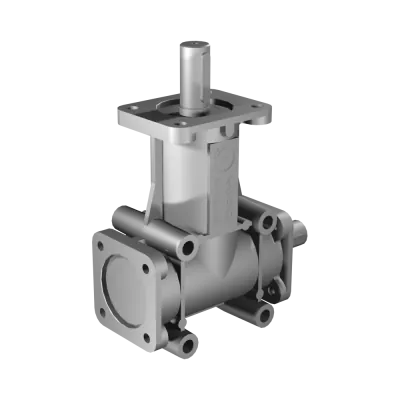

Poggi right angle gearbox 2032, R1:2, D2, Ø24h7, 2-way, Aluminium
HV3042032122The Poggi right angle gearbox 2032, featuring a 2:1 gear ratio and D2 configuration, is designed for efficient speed reduction and torque increase in compact mechanical systems. With two Ø24h7 output shafts, this gearbox enables mirrored or parallel output functionality. The high-strength aluminium housing ensures low weight and excellent corrosion resistance. Rated for 28 Nm at 1400 RPM, it operates reliably up to 1400 RPM and offers a standard backlash of 15'–30', making it well-suited for general industrial automation.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2032 delivers a 2-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 2:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 28 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
