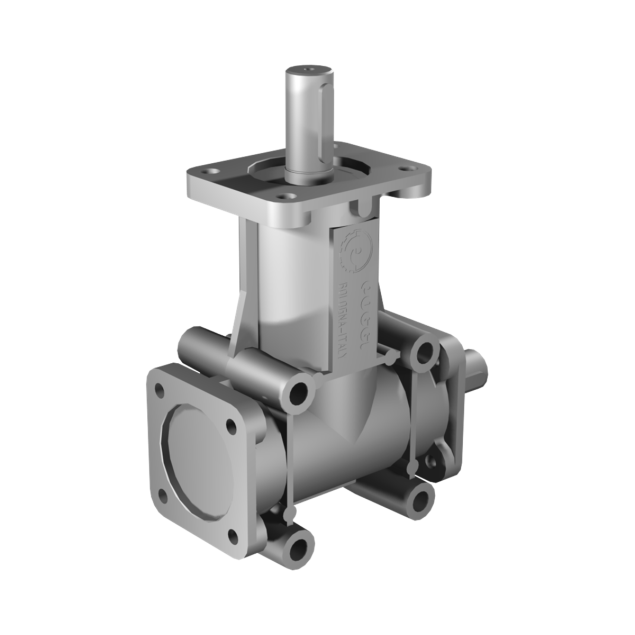

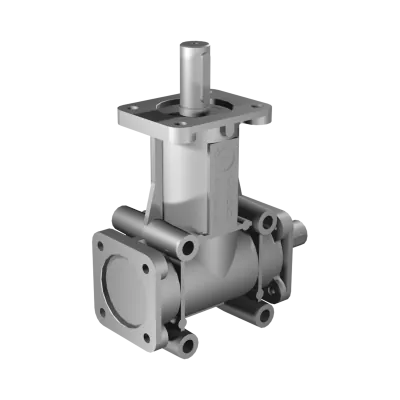

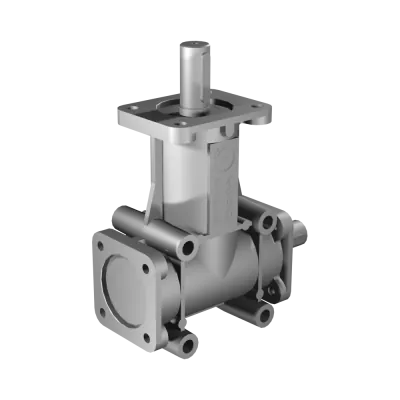

Poggi right angle gearbox 2032, R1:1, D2, Ø24h7, 2-way, Reduced backlash, Aluminium
HV3042032112SThe Poggi right angle gearbox 2032 offers a 1:1 gear ratio and a D2 configuration with two Ø24h7 output shafts, making it an ideal solution for synchronized motion or power distribution. Its precision-machined aluminium housing ensures optimal weight-to-strength ratio and corrosion resistance. With a maximum torque capacity of 50 Nm at 1400 RPM and operating speeds up to 3000 RPM, this gearbox is well-suited for dynamic automation systems where reliability and efficiency are essential.
Made to order
Expected shipment:
More Information
Description
The Poggi 2032 gearbox is designed for a 2-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 50 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
