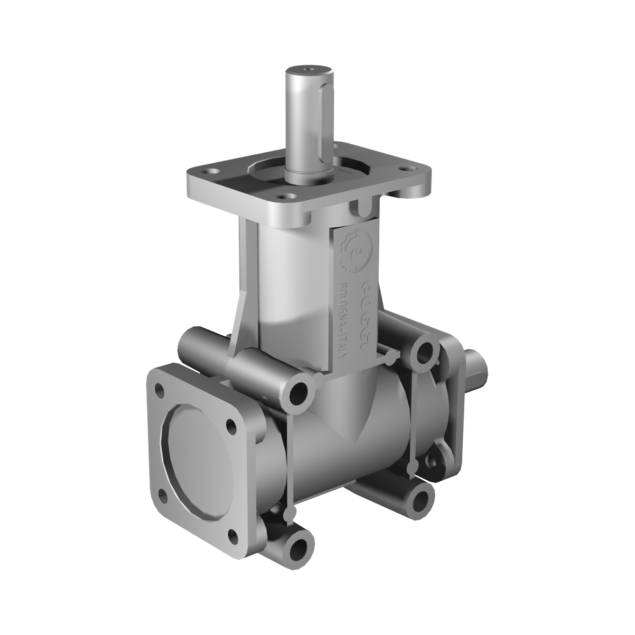

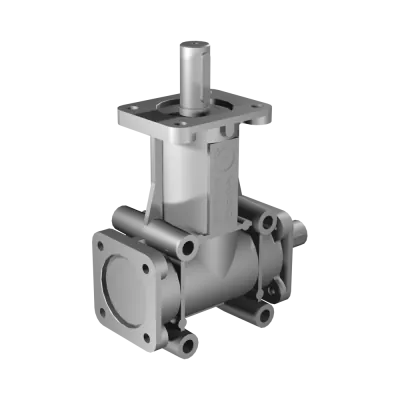

Poggi right angle gearbox 2032, R1:1, D2, Ø24h7, 2-way, Aluminium
HV3042032112The Poggi right angle gearbox 2032 combines a 1:1 gear ratio with a D2 configuration, supporting dual mirrored outputs through two Ø24h7 shafts. With a torque capacity of 50.0 Nm @ 1400 RPM and a maximum speed of 3000 RPM, it offers precise and durable performance for synchronized drives and automation systems. The lightweight aluminium housing ensures corrosion resistance and installation flexibility. A defined backlash of 15'–30' supports accurate and repeatable motion control under continuous load.
Made to order
Expected shipment:
More Information
Description
The Poggi 2032 gearbox is designed for a 2-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 50.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
