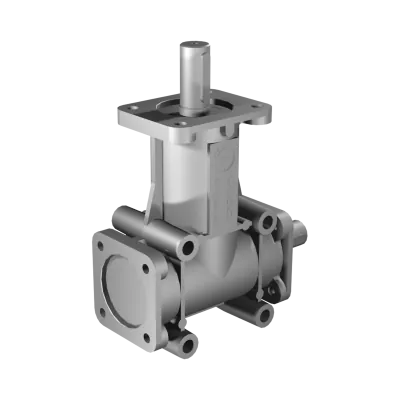

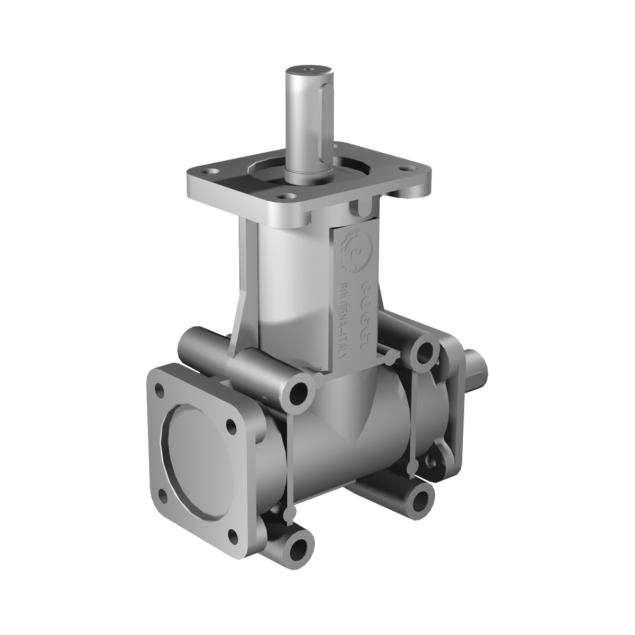

Poggi right angle gearbox 2032, R1:1, D1, Ø24h7, 2-way, Aluminium
HV3042032111The Poggi right angle gearbox 2032 delivers high performance with a 1:1 gear ratio and D1 configuration, utilizing two Ø24h7 shafts. Engineered for power transmission in dual-shaft systems, it offers a robust output of 50.0 Nm @ 1400 RPM and handles speeds up to 3000 RPM. The aluminium housing keeps weight low while maintaining corrosion resistance and mechanical strength. A defined backlash of 15'–30' ensures consistent and repeatable performance in automation systems requiring reliable torque transfer.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2032 delivers a 2-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2032
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 50.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
