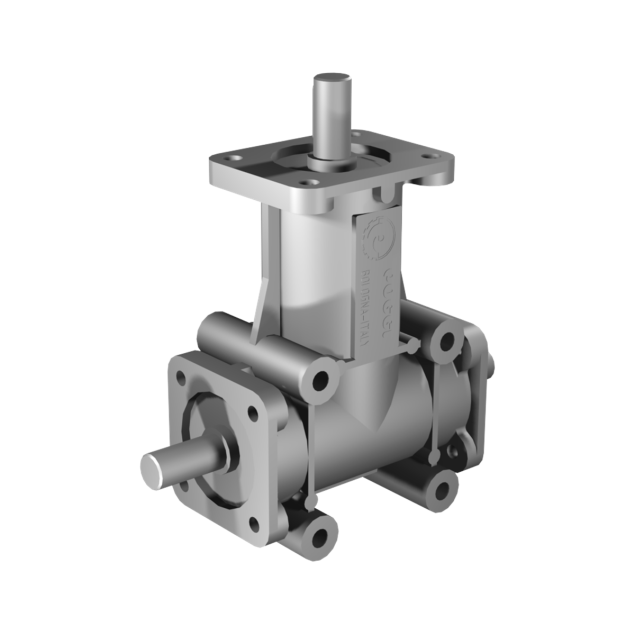

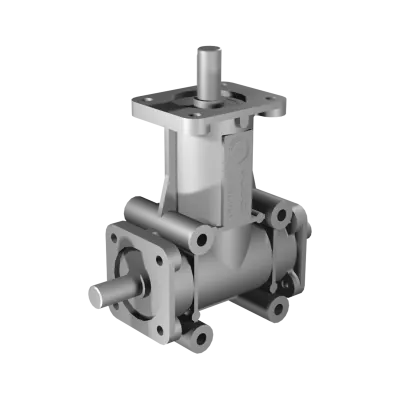

Poggi right angle gearbox 2031, R1:3, D1/2, Ø19h7, 3-way, Aluminium
HV3042031131The Poggi right angle gearbox 2031 with a 3:1 gear ratio is designed for compact, high-precision torque transfer at 90° angles. With a D1/2 shaft configuration and Ø19h7 shaft diameters, this gearbox offers flexible installation in applications requiring three-shaft setups. Housed in lightweight aluminium, it delivers a torque of up to 18 Nm at 400 RPM and supports operational speeds up to 1000 RPM. Its backlash rating of 15'–30' makes it well-suited for moderate precision mechanical systems.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2031 is ideal when you need a 3-way layout with a 1:3 gear ratio and Ø19h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2031
-
Gear ratio: 3:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø19h7
-
Max torque @ 400 RPM: 18 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
