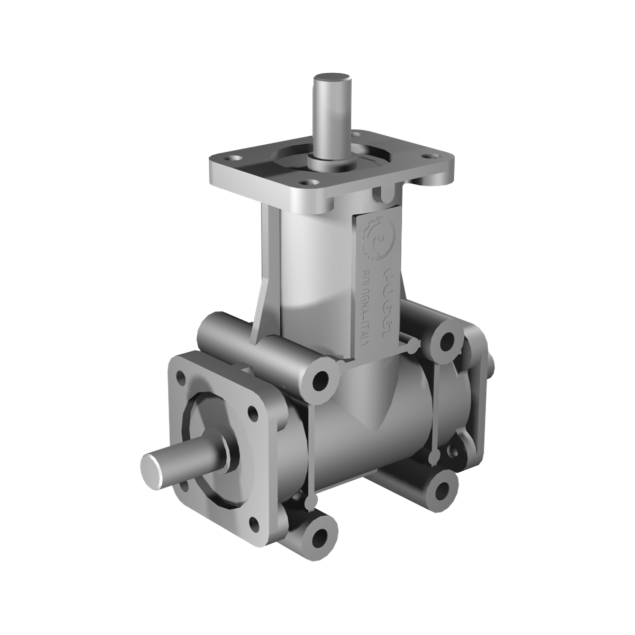

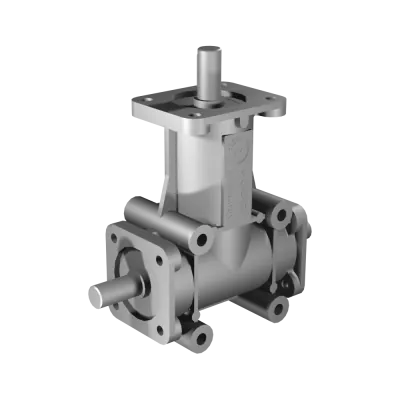

Poggi right angle gearbox 2031, R1:2, D1/2, Ø19h7, 3-way, Reduced backlash, Aluminium
HV3042031121SThe Poggi right angle gearbox 2031, R1:2, D1/2, Ø19h7, 3-way, Aluminium is a compact precision gearbox designed for efficient torque redirection and speed increase. With a gear ratio of 1:2, it doubles the output shaft speed, making it well-suited for synchronization tasks in compact automation setups, indexing systems, or material feeding applications.
The D1/2 configuration supports a three-shaft layout, redirecting motion across three perpendicular axes, allowing simultaneous power distribution or directional control in tight mechanical designs. The Ø19h7 precision shaft bores enable accurate coupling with minimal backlash.
Its aluminium housing ensures a balance of strength and low weight, offering corrosion resistance for both mobile and hygienic environments. With a rated torque of 22 Nm at 1400 RPM and maximum speed of 1400 RPM, the gearbox meets the demands of dynamic and maintenance-friendly machinery.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2031 is ideal when you need a 3-way layout with a 1:2 gear ratio and Ø19h7 shaft interfaces (D1/2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:2 (R1:2)
Increases output speed twofold — ideal for high-speed mechanisms or reduced footprint systems. -
Configuration: D1/2 (3-way)
Distributes torque across three orthogonal shafts — suitable for coordinated or synchronized drives. -
Shafts: Ø19h7
Precision fit for secure coupling and minimal backlash. -
Housing: Aluminium
Corrosion-resistant and lightweight — optimal for hygienic and mobile applications. -
Nominal torque: 22 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: —
(Not specified — contact BJ-Gear for further details)
