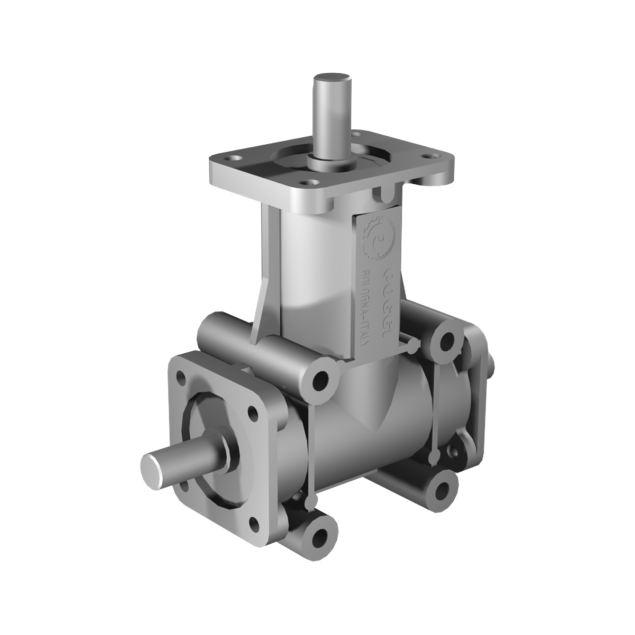

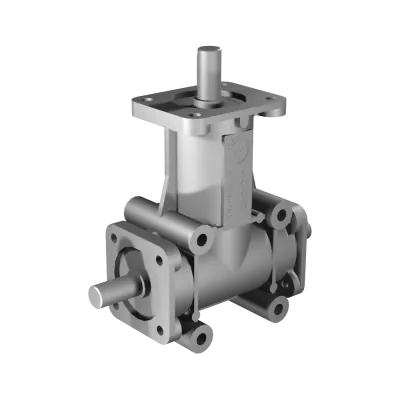

Poggi right angle gearbox 2031, R1:1, D1/2, Ø19h7, 3-way, Reduced backlash, Aluminium
HV3042031111SThe Poggi right angle gearbox 2031, R1:1, D1/2, Ø19h7, 3-way, Aluminium is a high-precision angular drive with a 1:1 gear ratio, enabling equal input and output speeds while efficiently redirecting torque in three directions. Designed for compact machine integration, this gearbox is ideal for synchronizing motion between multiple axes or shafts.
Its D1/2 three-way configuration distributes motion evenly across three orthogonal axes, facilitating simultaneous mechanical operations—such as synchronized conveyors, rotary positioning units, or cam indexing. The Ø19h7 shaft bores allow precise alignment with standard couplings, ensuring low backlash and stable transmission.
The aluminium housing ensures a lightweight structure with high resistance to corrosion. Supporting speeds up to 3000 RPM and providing up to 38 Nm torque at 1400 RPM, this model is well-suited for automation systems where performance, symmetry, and reliability are key.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2031 delivers a 3-way layout with a 1:1 gear ratio and Ø19h7 shaft interfaces (D1/2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:1 (R1:1)
Maintains equal speed between input and output — useful for synchronized or mirrored drive systems. -
Configuration: D1/2 (3-shaft layout)
Allows simultaneous torque transmission in three 90° directions. -
Shafts: Ø19h7
Tight tolerance for precision-fit couplings and stable shaft alignment. -
Housing: Aluminium
Lightweight and corrosion-resistant — supports mobile or cleanroom applications. -
Nominal torque: 38 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
-
Backlash: —
(Not specified — contact BJ-Gear for further details)
