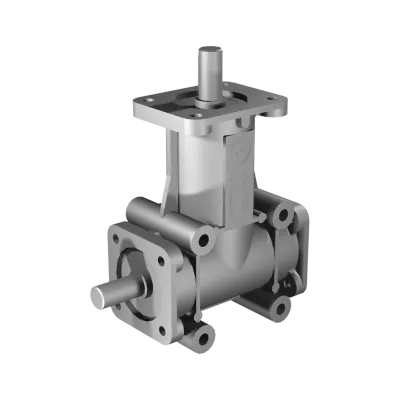

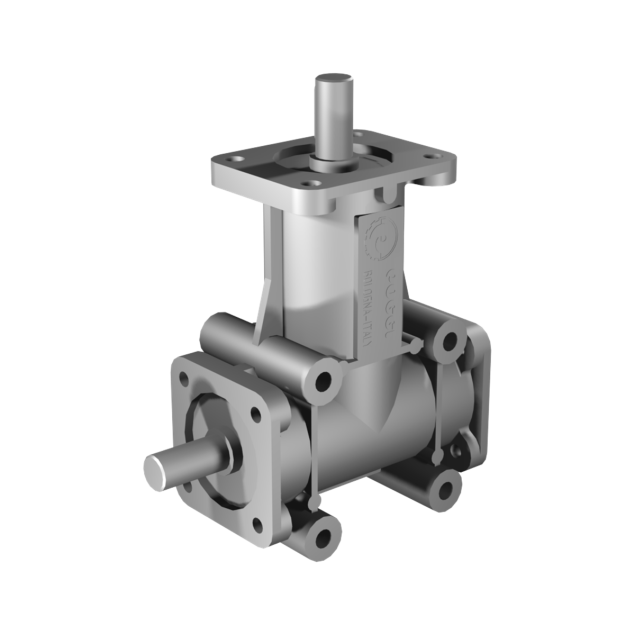

Poggi right angle gearbox 2030, R1:3, D2, Ø19h7, 2-way, Reduced backlash, Aluminium
HV3042030132SThe Poggi right angle gearbox 2030, R1:3, D2, Ø19h7, 2-way, Aluminium is a compact angular drive designed for space-saving power transmission and speed multiplication. With a gear ratio of 1:3, this model increases the output shaft speed threefold, making it suitable for applications such as rotary actuators, feeders, and material handling systems.
This version features a D2 configuration — two precision-machined Ø19h7 shafts positioned at 90°, ensuring efficient torque transfer and easy mechanical integration. The lightweight aluminium housing offers both corrosion resistance and structural strength, making it ideal for use in mobile or hygienic systems.
The gearbox delivers up to 18 Nm torque at 400 RPM, and supports operating speeds up to 1000 RPM, making it a robust and maintenance-friendly solution for various automation tasks.
Made to order
Expected shipment:
More Information
Description
Model 2030 from Poggi offers a 2-way layout with a 1:3 gear ratio and Ø19h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Multiplies output shaft speed by 3× — ideal for fast indexing systems or compact drives. -
Configuration: D2 (2-shaft design)
Provides 90° torque redirection with efficient two-point layout. -
Shafts: Ø19h7
Ensures precise coupling fit and reduced transmission losses. -
Housing: Aluminium
Combines light weight with corrosion resistance — suitable for hygiene-critical and mobile environments. -
Nominal torque: 18 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: —
(Not specified – please contact BJ-Gear for precise backlash values)
