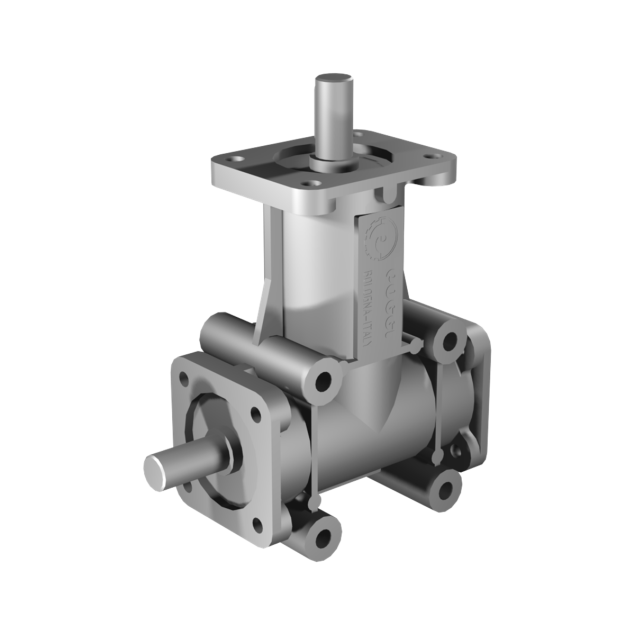

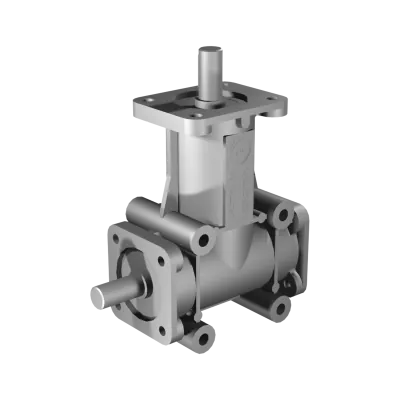

Poggi right angle gearbox 2030, R1:3, D2, Ø19h7, 2-way, Aluminium
HV3042030132The Poggi right angle gearbox 2030, R1:3, D2, Ø19h7, 2-way, Aluminium is designed to deliver reliable torque transmission with a focus on compactness, acceleration, and angular redirection of motion. Featuring a gear ratio of 1:3, this model multiplies the output speed threefold — ideal for systems where rapid rotary output is needed from a slow-speed input, such as in indexing devices or modular automation systems.
Its D2 configuration consists of a simple 90° 2-shaft arrangement for input-output torque transfer, making integration into tight mechanical setups efficient. Precision Ø19h7 shafts support high-quality coupling, minimizing play and vibration.
Built from corrosion-resistant aluminium, the housing ensures a lightweight yet robust unit that supports up to 18 Nm torque at 400 RPM, with a maximum speed of 1000 RPM. This gearbox is optimized for dynamic yet space-restricted applications where rotational speed enhancement is key.
Made to order
Expected shipment:
More Information
Description
The Poggi 2030 gearbox is designed for a 2-way layout with a 1:3 gear ratio and Ø19h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Boosts output speed by 300% — suitable for rapid, low-torque actuation systems. -
Configuration: D2 (2-shaft layout)
Straightforward 90° redirection — simplifies compact machine designs. -
Shafts: Ø19h7
Precision fit ensures stable, low-backlash coupling. -
Housing: Aluminium
Lightweight and corrosion-resistant — supports hygienic and mobile installations. -
Nominal torque: 18 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: 15'–30'
