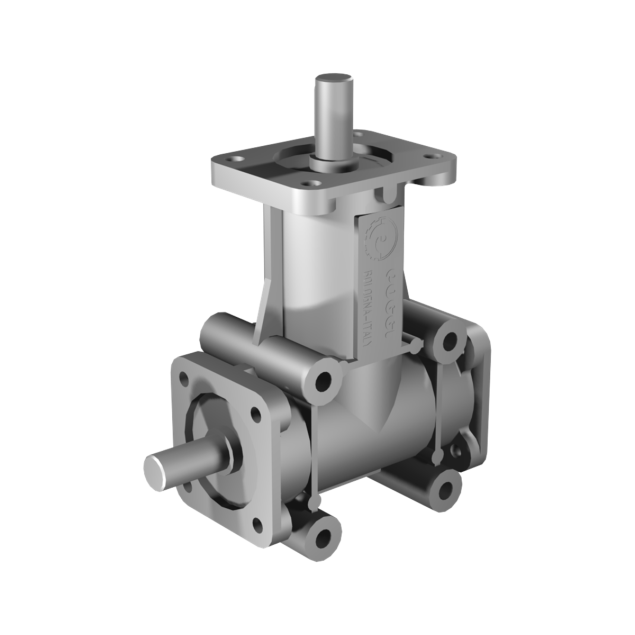

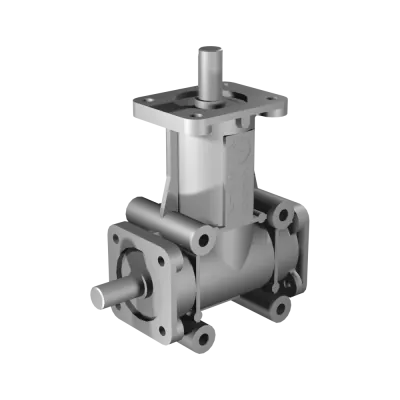

Poggi right angle gearbox 2030, R1:2, D2, Ø19h7, 2-way, Aluminium
HV3042030122The Poggi right angle gearbox 2030, R1:2, D2, Ø19h7, 2-way, Aluminium is engineered for space-saving torque redirection in automation and machine design where moderate speed increase is required. The gear ratio of 1:2 enables the output shaft to rotate twice as fast as the input, making it ideal for packaging lines, lightweight drives, or indexing tables.
The D2 configuration provides a 90° angular layout with one input and one output shaft, supporting bidirectional transmission and easy mounting. Ø19h7 precision shafts ensure standardized fit and reliable mechanical integration across industry couplings.
Its lightweight aluminium housing offers corrosion resistance and mechanical stability. The unit supports speeds up to 1400 RPM and delivers up to 22 Nm torque at 1400 RPM, balancing compactness, output speed, and robustness.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2030 delivers a 2-way layout with a 1:2 gear ratio and Ø19h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:2 (R1:2)
Doubles output shaft speed — suitable for indexing or fast cycling mechanisms. -
Configuration: D2 (2-shaft layout)
Enables 90° redirection of motion in tight installations. -
Shafts: Ø19h7
Precision fit shafts for secure and vibration-free connections. -
Housing: Aluminium
Lightweight and corrosion-resistant — fits mobile, hygienic, or compact units. -
Nominal torque: 22 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: 15'–30'
