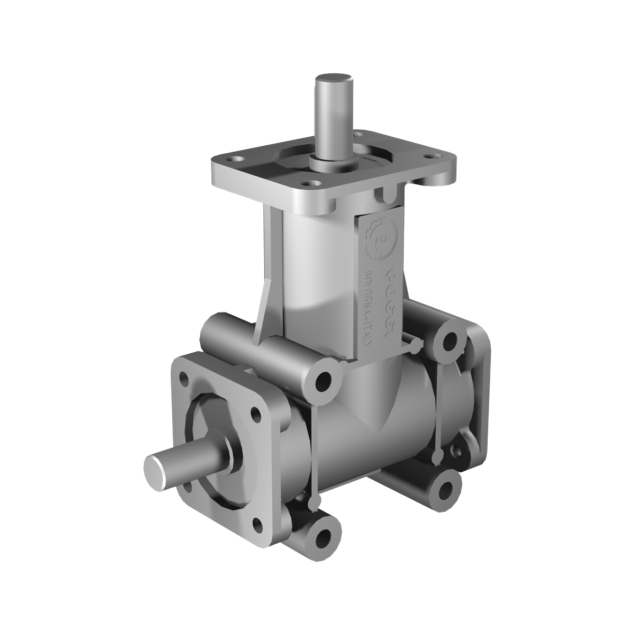

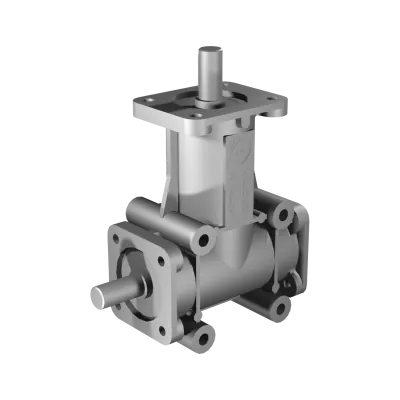

Poggi right angle gearbox 2030, R1:2, D1, Ø19h7, 2-way, Aluminium
HV3042030121The Poggi right angle gearbox 2030 with a 2:1 gear ratio and D1 configuration delivers increased torque via two Ø19h7 shafts, making it ideal for load-carrying automation systems and synchronized drives. With a torque output of 22.0 Nm @ 1400 RPM and support for speeds up to 1400 RPM, it balances performance and durability in tight spaces. The aluminium housing ensures corrosion resistance and compact form factor, while a backlash range of 15'–30' ensures accurate and repeatable operation.
Made to order
Expected shipment:
More Information
Description
The Poggi 2030 gearbox is designed for a 2-way layout with a 1:2 gear ratio and Ø19h7 shaft interfaces (D1). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2030
-
Gear ratio: 2:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø19h7
-
Max torque @ 1400 RPM: 22.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
