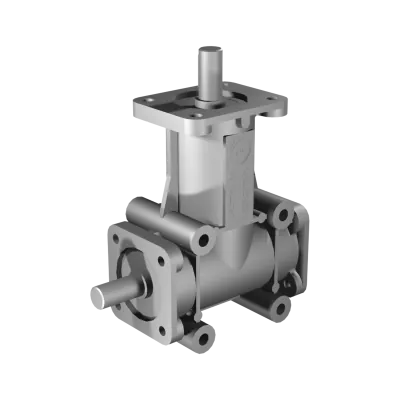

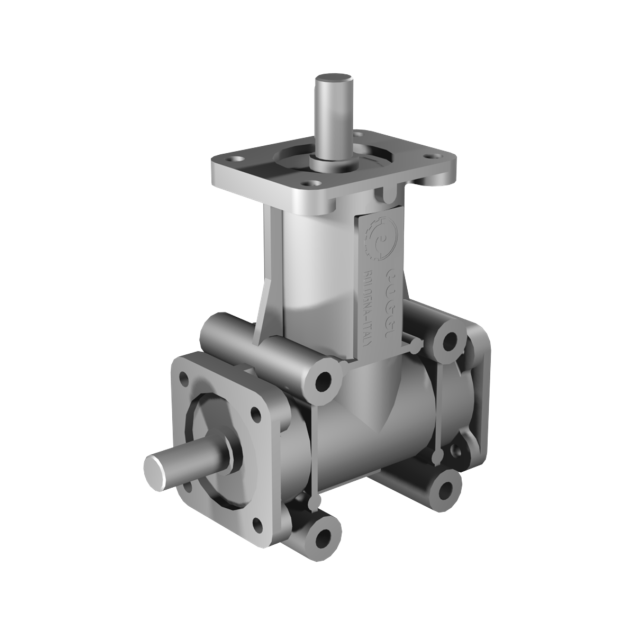

Poggi right angle gearbox 2030, R1:1, D2, Ø19h7, 2-way, Reduced backlash, Aluminium
HV3042030112SThe Poggi right angle gearbox 2030, R1:1, D2, Ø19h7, 2-way, Aluminium is a compact, lightweight solution tailored for systems requiring bidirectional torque transmission without speed change. Its 1:1 gear ratio ensures consistent input-output synchronization, making it suitable for indexing systems, rotary actuators, or compact conveyor drives.
With a D2 configuration, this gearbox supports two shafts placed at 90° to each other — one input and one output — enabling simple angular redirection of motion. The Ø19h7 precision shafts allow for seamless integration into standardized couplings and pulleys.
Built from aluminium, the gearbox combines low weight with high corrosion resistance, ideal for hygienic production environments or mobile automation units. It operates at speeds up to 3000 RPM and delivers up to 38 Nm torque at 1400 RPM, making it a reliable component for dynamic applications where space and efficiency are critical.
Made to order
Expected shipment:
More Information
Description
The Poggi 2030 gearbox is designed for a 2-way layout with a 1:1 gear ratio and Ø19h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:1 (R1:1)
Maintains equal input and output speed — optimal for synchronized mechanical systems. -
Configuration: D2 (2-shaft layout)
Redirects torque at 90° with minimal complexity. -
Shafts: Ø19h7
Precision machined for high-fit tolerances in compact assemblies. -
Housing: Aluminium
Lightweight and corrosion-resistant — ideal for food, pharma, or mobile units. -
Nominal torque: 38 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
-
Backlash: —
(Not specified — contact BJ-Gear for detailed tolerances)
