Poggi right angle gearbox 2030, R1:1, D1, Ø19h7, 2-way, Aluminium

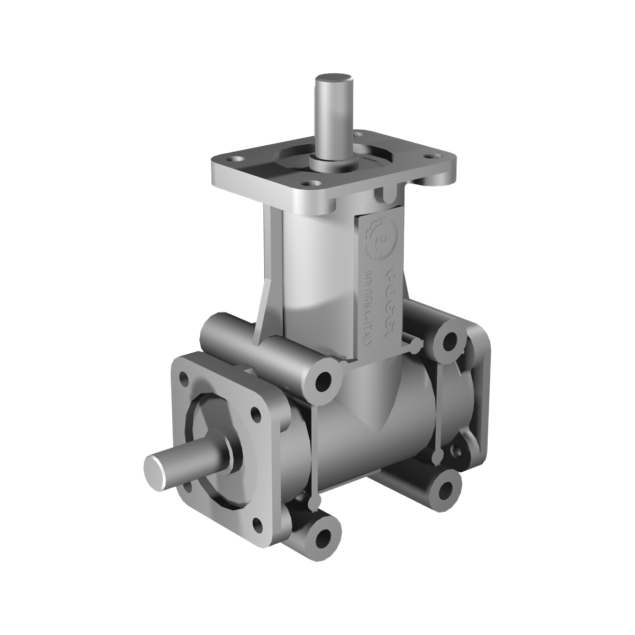

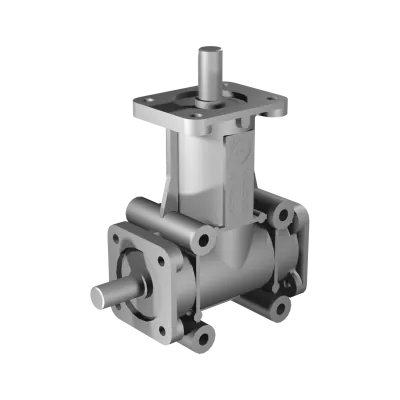

HV3042030111The Poggi right angle gearbox 2030 features a 1:1 gear ratio in a D1 configuration with two Ø19h7 shafts, supporting compact, mirrored two-output systems. Designed for fast-paced automation, it provides 38.0 Nm @ 1400 RPM and accommodates speeds up to 3000 RPM. The aluminium housing delivers lightweight durability and corrosion resistance, making it suitable for a range of industrial and OEM uses. A backlash specification of 15'–30' ensures consistent repeatability in synchronized motion systems.
Made to order
Expected shipment:
More Information
Description
Model 2030 from Poggi offers a 2-way layout with a 1:1 gear ratio and Ø19h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2030
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø19h7
-
Max torque @ 1400 RPM: 38.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
