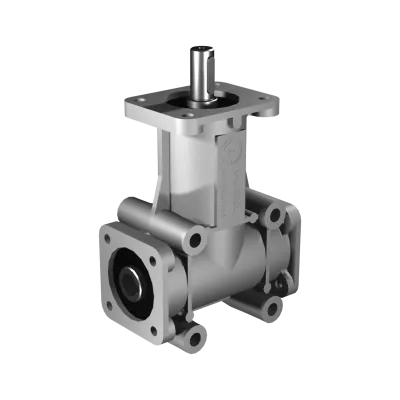

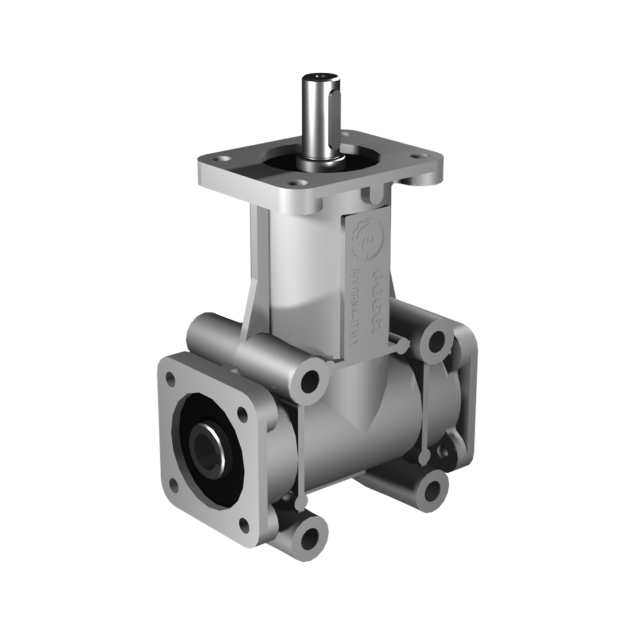

Poggi right angle gearbox 2028, R1:3, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium

HV3042028131

Poggi 2028 right-angle gearbox, R1:3, Ø19h7, 3-way, D1/2. compact aluminium casing – suited for multi-axis automation, synchronized motion, and OEM integration.

€669.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Designed for industrial efficiency, the Poggi 2028 offers 3-way output via Ø19h7 shafts in D1/2 configuration, with a 1:3 gear ratio. Housed in lightweight aluminium housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.

Specifications

Country of origin
ITA
HS-Code
84834023.000000
ERP net weight (Kg)
4.800000
Shaft diameter
Ø19h7 - Ø19H7
Number of shafts
3
Material
Aluminium
Max torque at 400RPM (Nm)
18
Max RPM (RPM)
1000
Ratio
R1:3
Direction
D1/2
Backlash
Normal 15' - 30'

Downloads

Foreign trade

HS-Code
84834023
ERP net weight (Kg)
4.80
Country of origin
ITA
Poggi right angle gearbox 2028, R1:3, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium
Poggi right angle gearbox 2028, R1:3, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium
HV3042028131
