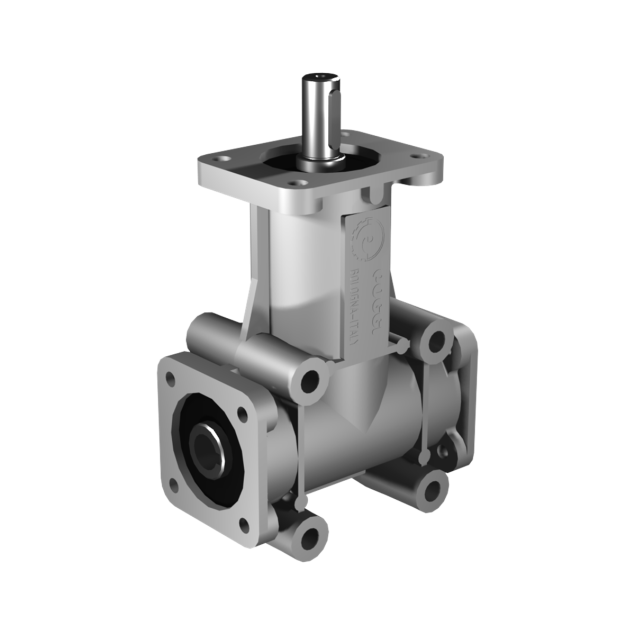

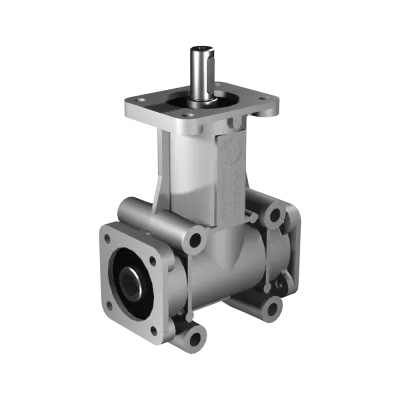

Poggi right angle gearbox 2028, R1:2, D1/2, Ø19h7 - Ø19H7, 3-way, Reduced backlash, Aluminium
HV3042028121SThe Poggi right angle gearbox 2028, R1:2, D1/2, Ø19h7, 3-way, Aluminium is engineered for automation setups requiring dual-direction output with moderate torque and high rotational speed. Its 1:2 gear ratio offers a balanced performance profile where increased speed is prioritized over torque amplification — suitable for feed systems, synchronized transfer mechanisms, and compact robotic joints.
With a D1/2 configuration, this model distributes torque in two output directions from one input, making it ideal for symmetrical load sharing in modular machines or coordinated line drives.
The three Ø19h7 shafts ensure precise coupling, while the lightweight aluminium housing supports operation at up to 1400 RPM and delivers up to 22 Nm nominal torque — combining speed, precision, and installation flexibility in one compact unit.
Made to order
Expected shipment:
More Information
Description
With a compact design, the Poggi 2028 provides 3-way output via Ø19h7 shafts in D1/2 configuration, with a 1:2 gear ratio. Housed in robust aluminium design, it balances strength and thermal efficiency. This version incorporates reduced backlash technology to support applications that demand fine positional accuracy and smooth response. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear ratio: 1:2 (R1:2)
Doubles output speed, ideal for quick-response systems with moderate load. -
Configuration: D1/2 (3-shaft, dual-output)
Two outputs at 90° angles allow for mirrored torque transmission. -
Shafts: Ø19h7
Optimized for precision alignment in space-limited assemblies. -
Housing: Aluminium
Durable, corrosion-resistant and lightweight for dynamic applications. -
Nominal torque: 22 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: —
(Not specified — contact BJ-Gear for further tolerances)
