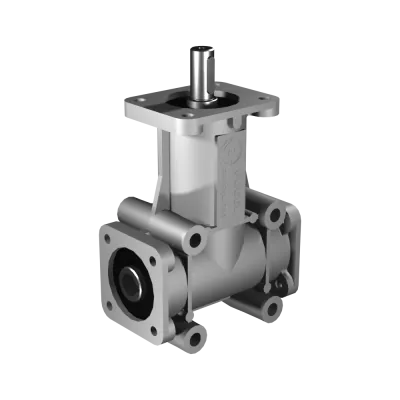

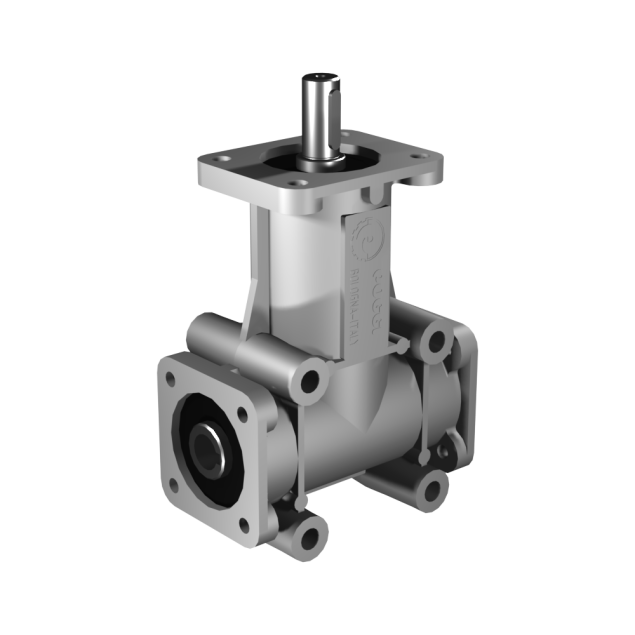

The Poggi 2028 right-angle gearbox is engineered to meet the demands of high-precision, multi-directional power transmission. With a 1:1 gear ratio, it provides equal-speed torque transfer across three axes, supported by Ø19h7 and Ø19H7 precision shafts in D1/2 configuration. This configuration enables seamless bidirectional output from a single input — ideal for complex automation layouts.

This model is built with reduced backlash spiral bevel gears, significantly limiting angular play for applications requiring accurate repeatability and responsive control. This makes it particularly suitable for servo-driven systems, robotics, and synchronized motion sequences.

Housed in lightweight aluminium, the gearbox combines strength with corrosion resistance and thermal efficiency. Its sealed-for-life design ensures zero maintenance and consistent performance over long duty cycles, even under demanding operational loads.

Whether integrated into packaging machines, pick-and-place equipment, or high-cycle automation, the Poggi 2028 delivers a superior combination of precision, flexibility, and reliability.

• Gear ratio: 2:1 (R1:2)
  Reduces speed while boosting torque — ideal for handling or controlled drive systems.

• Configuration: D1/2, 3-shaft layout
  Supports flexible drive output across three 90° axes.

• Shaft diameter: Ø19h7
  Precision-machined shafts for accurate alignment and efficient torque transfer.

• Housing material: Aluminium
  Robust, corrosion-resistant, and optimized for weight-sensitive applications.

• Backlash: 15–30′

• Nominal torque: 22 Nm @ 1400 RPM

• Maximum speed: 1400 RPM
