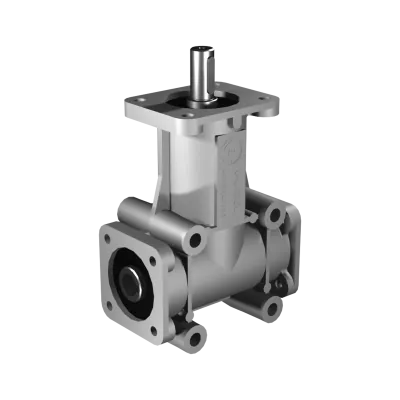

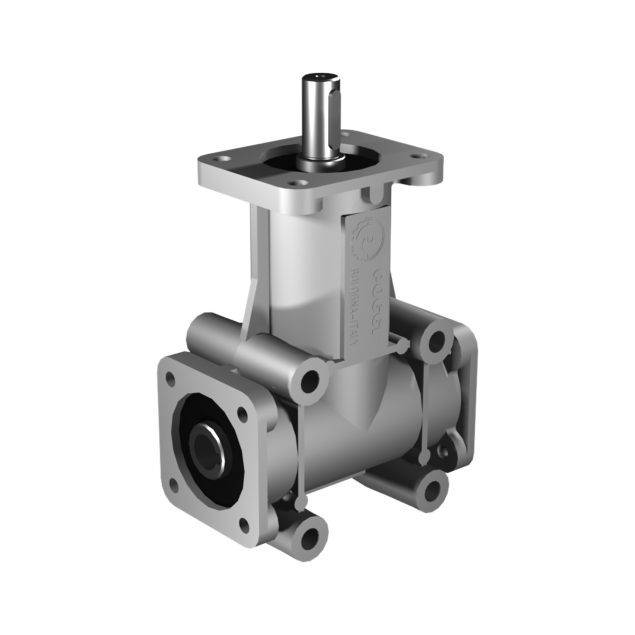

Poggi right angle gearbox 2028, R1:1, D1/2, Ø19h7 - Ø19H7, 3-way, Aluminium
HV3042028111The Poggi right angle gearbox 2028 features a 1:1 gear ratio and a D1/2 configuration with three Ø19h7 shafts, making it ideal for mirrored-output or synchronized drive systems. With a torque rating of 38.0 Nm @ 1400 RPM and a maximum speed of 3000 RPM, it supports high-speed automation tasks where efficiency and balance are critical. The lightweight aluminium housing ensures durability and corrosion protection, and a backlash range of 15'–30' offers reliable repeatability in demanding environments.
Made to order
Expected shipment:
More Information
Description
The Poggi 2028 right-angle gearbox delivers 3-way output via Ø19h7 shafts in D1/2 configuration, with a 1:1 gear ratio. Housed in lightweight aluminium housing, it balances strength and thermal efficiency. Internally driven by spiral bevel gears, the unit ensures smooth, reliable torque transfer and long-lasting, maintenance-free operation in demanding environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2028
-
Gear ratio: 1:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø19h7
-
Max torque @ 1400 RPM: 38.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
