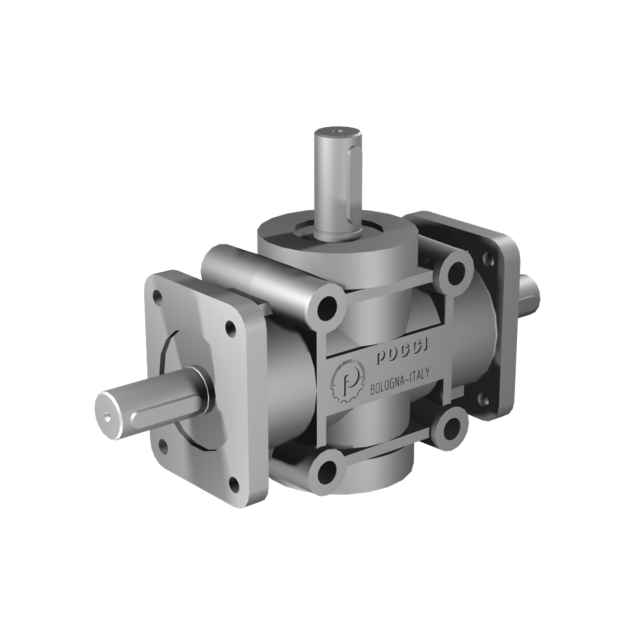

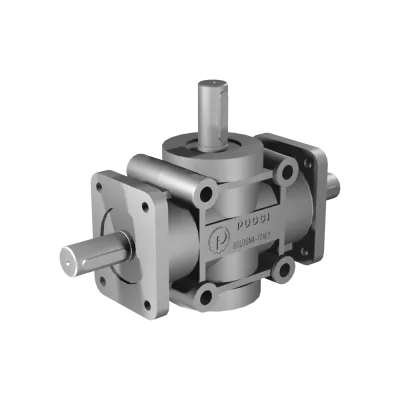

Poggi right angle gearbox 2025, R1:3, D2, Ø24h7, 3-way, Aluminium
HV3042025132The Poggi right angle gearbox 2025 pairs a 3 : 1 gear ratio with a D2 configuration and three Ø24h7 shafts, delivering smooth, mirrored output at reduced speed. Its aluminium housing keeps weight down while ensuring corrosion resistance. Rated for 22.0 Nm @ 400 RPM and designed for a maximum speed of 400 RPM, the unit excels in conveyors, indexing tables, and other medium-duty systems that need stable torque at low RPM. A backlash window of 15'–30' provides dependable positional accuracy for everyday automation tasks.
Made to order
Expected shipment:
More Information
Description
The Poggi 2025 gearbox is designed for a 3-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 3 : 1
-
Shaft configuration: D2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 22.0 Nm
-
Max speed: 400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
