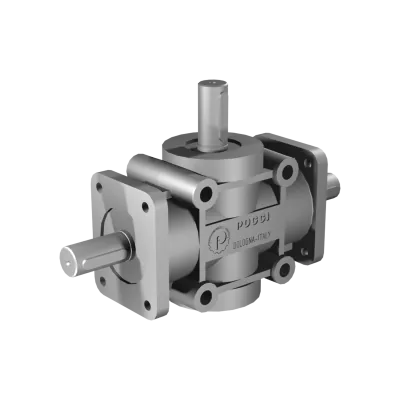

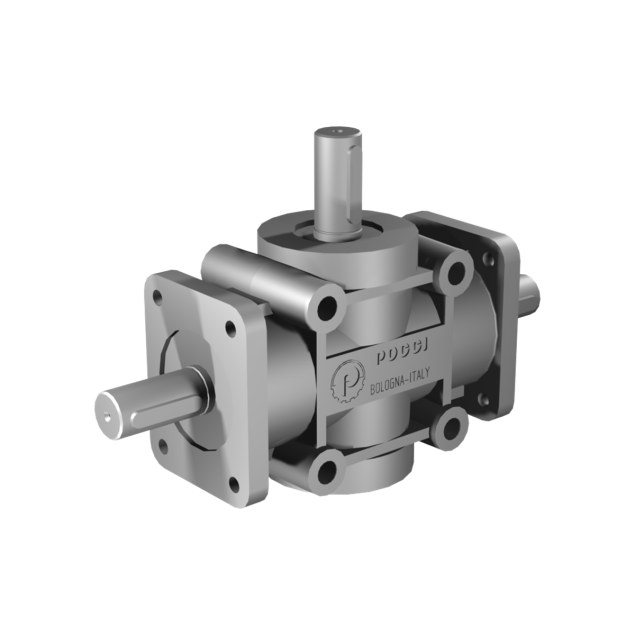

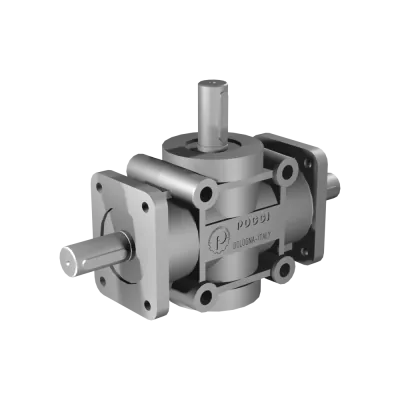

Poggi right angle gearbox 2025, R1:3, D1, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042025131SThe Poggi right angle gearbox 2025, R1:3, D1, Ø24h7, 3-way, Aluminium is engineered for compact systems requiring high-speed rotation and multi-directional torque transmission. With a 1:3 gear ratio, the unit increases output speed significantly, making it ideal for use in sorting machines, synchronized conveyors, or robotic systems where speed and space efficiency are key.
It features three Ø24h7 precision shafts arranged in a D1 configuration, distributing torque at 90° angles in three directions. This layout is optimal for coordinated motion across multiple machine axes from a single input.
The lightweight aluminium housing provides corrosion resistance and mechanical stability. It supports a nominal torque of 22 Nm at 400 RPM and operates up to 400 RPM, delivering consistent performance in dynamic environments.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2025 delivers a 3-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D1). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Increases output speed for fast-cycle, low-load applications. -
Configuration: D1 (3-shaft layout)
Allows synchronized torque distribution in three 90° directions. -
Shafts: Ø24h7
Precision shafts ensure low vibration and accurate alignment. -
Housing: Aluminium
Lightweight and corrosion-resistant — suitable for hygienic and compact systems. -
Nominal torque: 22 Nm @ 400 RPM
-
Maximum speed: 400 RPM
-
Backlash: —
(Not specified — contact BJ-Gear for detailed tolerances)
